| Name: | V Bank Hepa Filter | Size: | Custom |
|---|---|---|---|
| Separate: | Hot Melt | Frame: | Galvanized Frame |
| Packaging: | Plywood Packing | Original: | GuangZhou China |
| High Light: | Compact HVAC Portable Carbon Filter,HVAC Air Filters V Bank,Galvanized Iron Frame HVAC Air Filters |
||

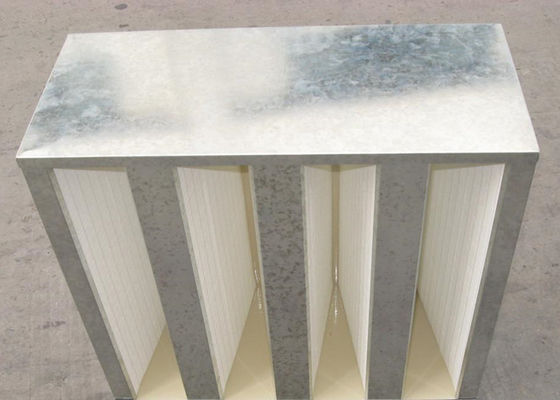

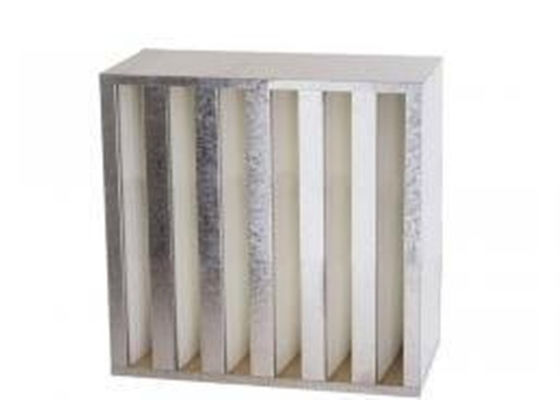

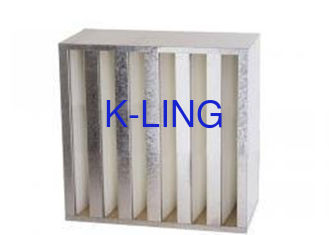

High Air Flow Compact HVAC Air Filters V Bank Filter With Galvanized Iron Frame
Description
Applications:
The V bank Filters are used in air conditioning and preparatory filtration in clean rooms.
Materials and Working Conditions:
Media: Polypropylene or glass fibre paper
Separator:Hot-melt beads
Frame: GI;Plastic
Efficiency range from F9 ,H10,H11,H13(EN 1822)
Initial resistance: 110 Pa
Recommended final pressure drop : 600Pa
Humidity resistance: 100%
Max Temperature: 80 ℃
Sealant: Polyurethane rubber PU
DIN 53438 Flammability: F1
UL 900 Standard : Class 2
Max.air flow rate: 125% of rated air flow
Gasket: one piece half round continuous gasket
Available in Box or Single flange type.
Parameter
| Size(WxHxD)mm | Filter Efficiency | Media area m3 | Airflow/pressure drop m3/h/Pa |
| 305x610x292 | E10 | 14 | 2000/160 |
| 595x595x292 | E10 | 21 | 4000/160 |
| 610x610x292 | E10 | 35 | 5000/160 |
| 305x610x292 | E12 | 16 | 1500/110 |
| 595x595x292 | E12 | 33 | 3400/110 |
| 610x610x292 | E12 | 40 | 4000/110 |
| 289x595x292 | H13 | 16 | 1300/110 |
| 595x595x292 | H13 | 38 | 3200/110 |
| 610x610x292 | H13 | 40 | 4000/110 |
