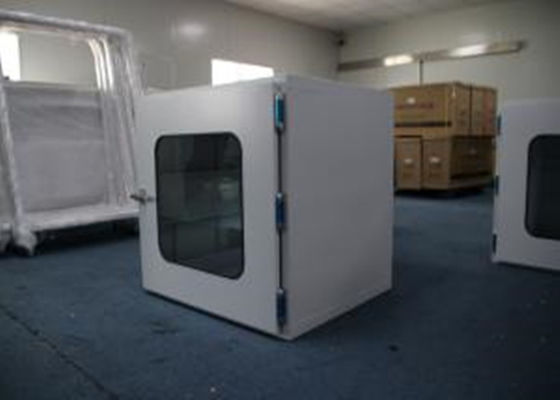

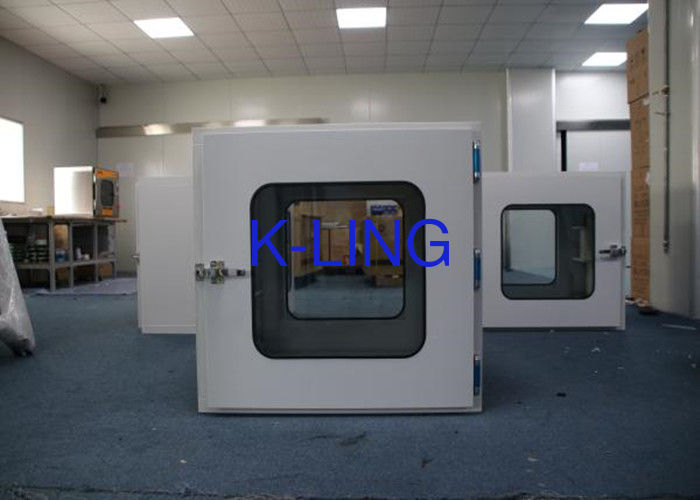

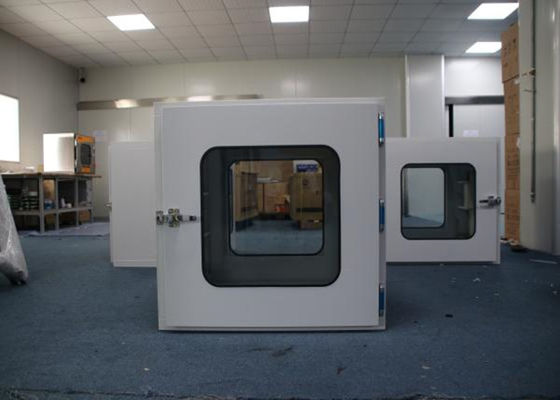

Common Transfer Window 230V/50HZ Pass Through Box Clean Room Powder Coated Steel

Common Transfer Window 230V/50HZ Pass Thru Box Powder Coated Steel Clean Room Pass Box

Description

Pass box is auxiliary equipment mainly used for passing small objects between 2 clean areas or between clean areas and unclean areas. Pass box reduces the closing and opening times of the clean rooms, which helps to maintain a reasonable air pressure in the clean room. Pass box keeps the contamination condition to the lowest.

Product and Solution Selection

1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.

Pass Thru Box​ Feature

Electrical or Mechanical interlocking system.
Multiple Option of Materials to minimize the cost.
Door with viewing glass.
Air Shower Type
UV Lamp Sterilization
Easy-to-install by Wall Mounted or Floor Mounted

Basic Parameters
