High Performance Hepa Filter Terminal Box With Draught Fan

High Performance Hepa Filter Terminal Box With Draught Fan
High Performance Hepa Filter Terminal Box With Draught Fan High Performance Hepa Filter Terminal Box With Draught Fan

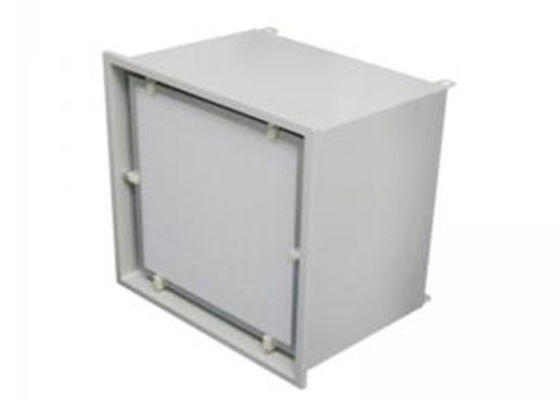

Large Image :  High Performance Hepa Filter Terminal Box With Draught Fan

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-HFB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set/ month
Detailed Product Description
Material: SUS 304/ Powder Coated Steel Application: Hepa Filter Box
Feature: Low Noise Use: Clean Room
Warranty: 1 Year Original: China
High Light:

Draught Fan Hepa Filter Module

,

Clean Room Hepa Filter Terminal Box Low Noise

,

Universal Hepa Filter Terminal Box

Hepa Filter Module With Draught Fan High Performance Hepa Filter Terminal Box







Description


The Hepa filter module with draught fan(BFU), which uses the latest technology in the United States, is a ceiling unit with a fan inside, used for turbulent flow and laminar flow clean room. BFU fan filter unit is one of the quietest and best-priced units on the market.

The Hepa filter module with draught fan (BFU) is an upgraded alternative to the FFU and hepa box. It is also a self-contained, modular end air supply with filtered power. BFU adopts the modern large-area new clean room clean safety theory, inhaling air from the top, and then filtering out the air.





Feature



The filter frame is made from stamping an entire piece of steel plate to ensure that the filter gasket contact surface smoothly, effectively preventing air leakage.
Unique compression device design: the filter frame is supported by compression devices found on all four sides of the frame. For easy replacement of HEPA filter, all the filter compression devices can be freely installed into the compression device bases welded onto the sides of the frame.





Parameter



Type for optional



Mini pleat HEPA filter HBM

Gel seal HEPA filter HBG

pressure test hole HBP

aerosol test hole HBA

down regulating damper HBD



Model

Air flow

( m3/h )

Mini pleat HEPA filter

W * H * D ( mm )

Box size

W * H * D ( mm )

KEL-HFB-320 300 - 450 320 * 320 * 96 390*390*380
KEL-HFB-484 600 – 1000 484 * 484 * 96 554*554*380
KEL-HFB-630 1000 – 1500 630 * 630 * 96 700*700*380

































Others


1)BFU can be customized according to the specific requirements of customers. BFU prices of different sizes, materials and performances may be slightly different. welcome to contact us for the price.

2)BFU is guaranteed for one year.
After the BFU is running, it should be checked regularly to test whether its high-efficiency filter can work normally. If it does not meet the requirements, it should be notified to the manufacturer as soon as possible.

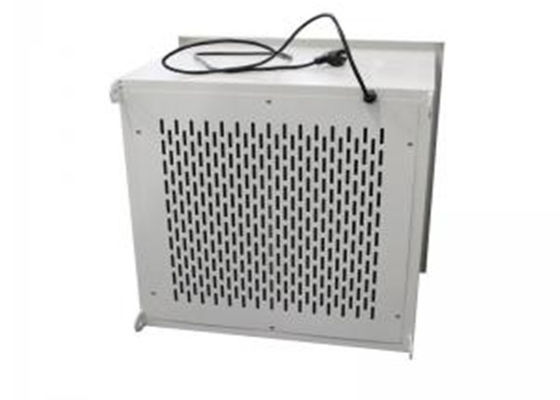

High Performance Hepa Filter Terminal Box With Draught Fan 0

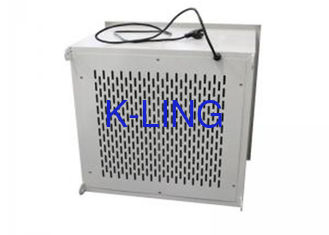

High Performance Hepa Filter Terminal Box With Draught Fan 1
