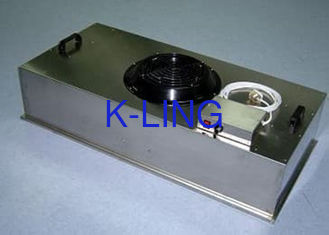

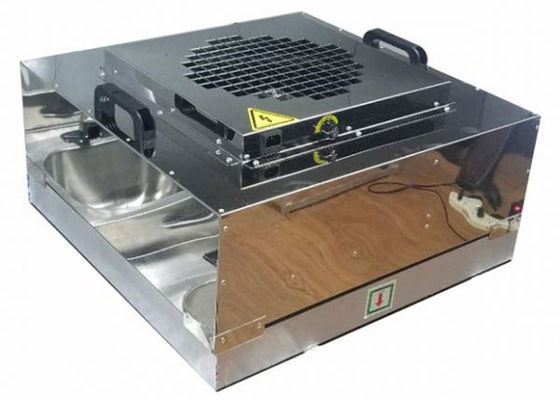

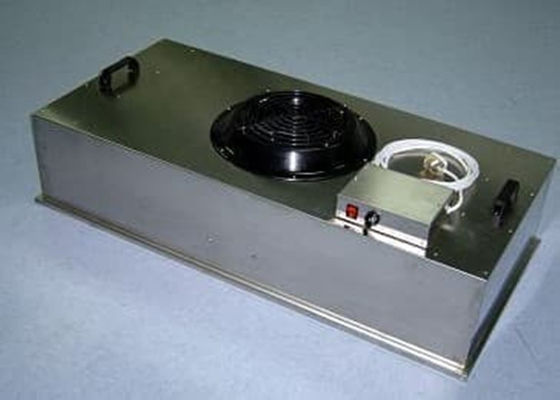

304 Stainless Steel Frame HEPA H13 FFU Fan Filter Unit For Air Purification

304 Stainless Steel Frame HEPA H13 FFU Fan Filter Unit For Air Purification


Introduction

FFU is self-clean air equipment. It can be installed to the ceiling or settled on the holder, which can reach Class 100. This FFU has HEPA filter and pre-filter. The fan absorbs the air from the top of it, and through the pre-filter and HEPA filter. The clean air after filtering will be send out by the whole air supply grille.


Features:

1. Low energy consumption, high performance, low operating cost
2. Perfect structure, low height, uniform wind speed
Scientific air duct design, low resistance, low noise, effectively save the space of technical interlayer.
3. different size available ,adapt to a variety of GRID system; Be able to timely respond to customer's change of external box material, special power supply or fan configuration;
4. Safe and humanized design
Can walk high strength box, to ensure the safety of installation or maintenance personnel, can be remote monitoring and adjustment, easy to operate;
5. Multiple safety protection devices
Equipped with overcurrent relay, motor protection device, fault display lamp, fault signal circuit, and can be installed temperature protector, fuse, motor circuit breaker, etc.


Material Data

Casing material: 304 stainless steel or aviation aluminum.
Fan: Domestic motor or imported motor.
Filter material: Ultra-fine fiberglass or PTFE.
Filter efficiency: H13~U17.
Sealing gasket: Sealing gasket in double air supply sides.
Temperature: Maximum 90°C in continuous service.
