Type: | Hepa Filter | Temperature: | 200-350℃ |
---|---|---|---|
Application: | Food And Medical Factory | Size: | Customized |
Warranty: | 1 Year | Original: | China |
High Light: | Ultrasonic Housing Hepa Filter,H14 Housing Hepa Filter,H14 HEPA Air Filter |

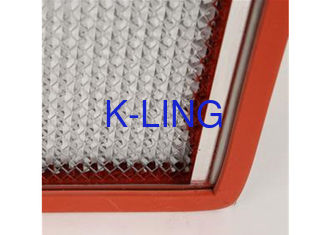

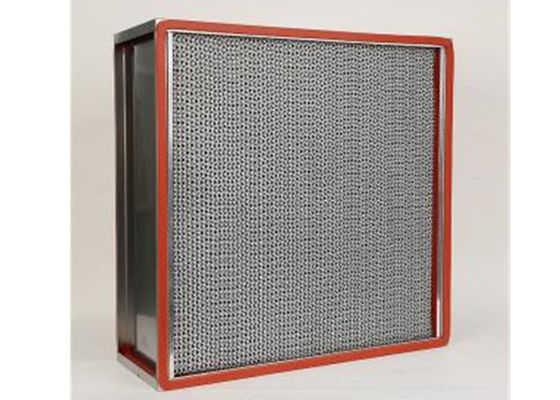

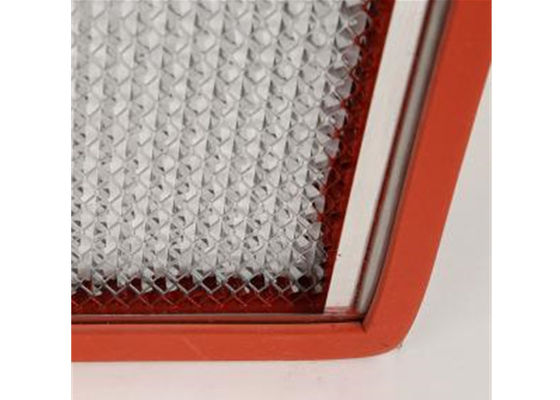

High Temperature High Efficiency / Ultrasonic Filter For Oven UV Oven Drying Room
Specifications:
300℃ high temperature resistant high efficiency filter H14
Main application: high temperature resistant clean equipment (electronics, biopharmaceutical, medical, chemical, etc.)
Some special process high temperature air supply clean system
Performance description
Frame: SUS304
Filter material: special glass fiber filter paper
Filter separation: aluminum foil
Sealant: Special high-temperature resistant adhesive
Gasket: glass fiber, high temperature resistant polyurethane gasket
Efficiency: H14(EN 1822)99.995% at MPPS(0.3um)
Continuous operating temperature: ≤300 C
Humidity resistance: ≤80% RH
Recommended maximum final resistance: ≤580 Pa
Parameter
Model | Size(mm)(W*H*D) | Rate air flow(m/h) | Initial pressure drop (Pa) | efficiency % 0.3u(DEHS) |
KEL-AF-320 | 320*320*220 | 400 | ≤220 | ≥99.99% |
KEL-AF-484 | 484*484*220 | 1000 | ||
KEL-AF-610A | 610*610*150 | 1000 | ||
KEL-AF-630 | 630*630*220 | 1500 | ||
KEL-AF-915 | 915*610*150 | 1500 | ||
KEL-AF-610B | 610*610*290 | 1800 | ||
KEL-AF-1220 | 1220*610*150 | 2000 | ||
KEL-AF-1260 | 1260*630*220 | 3000 | ||
Note | Deep pleat hepa filter can be customized according to the site. |
