Product Details:
|
| Structure: | Gel Seal Filter | Efficiency: | H13/H14 |
|---|---|---|---|
| Application: | Hospital / Pharmaceutical | Certification: | CE |
| Warranty: | 1 Year | Original: | China |
| Highlight: | H14 HEPA Filter System,H13 HEPA Filter System,GMP HEPA Filter System |
||

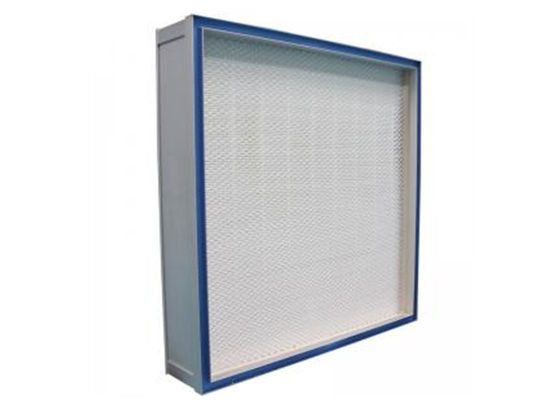

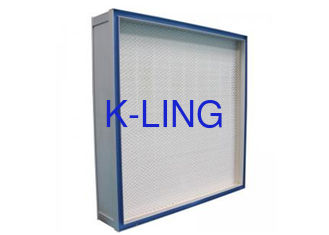

Medical GMP Gel Seal EN 1822 H13 / H14 HEPA Filter System For Clean Room
Features:
-- low wind resistance,
-- high dust holding capacity,
-- high filtration precision,
-- processed into various sizes and shapes according to customer needs, and suitable for different models.
Description
Application:Final or return filtration for clean rooms with turbulent flow.
Type:HEPA /ULPA filtering panel
Frame:Extruded and anodised aluminium.
Gasket:Half round continuous expanded polyurethane.
Media:Glass fibre paper.
Separator:Hot-melt beads.
Sealant:Polyurethane.
Grid:Mild steel painted grille upstream and downstream.
EN 1822 efficiency: H13.U15
MPPS efficiency:H13: ≥99.995%.; U15≥99.9995%.;
DOP efficiency:H13: ≥ 99.999%.; U15 ≥99.999%.;
Recommended final pressure drop:600 Pa.
Maximum flow rate:See table, use nominal values otherwise a reduction in
efficiency may occur.
Temperature:70°C maximum in continuous service.
Test:: 100% individually scanned to EN 1822.
Mounting system:Mechanical clamping structure, Terminal housings.
Optional:Alternative frame materials and size available on request.

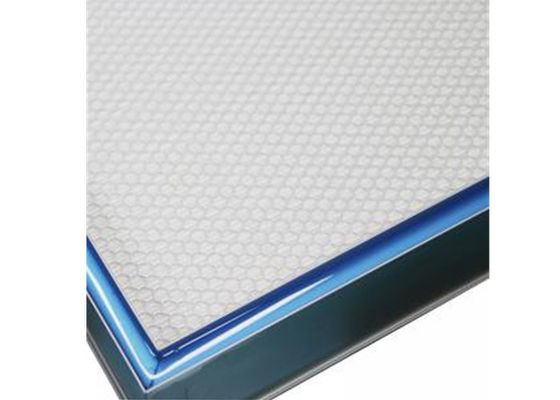

Top Gel Frame thickness :80mm,95mm,104mm
Side Gel Sealed Frame: 69mm,75mm,90mm,93mm, 96mm,100mm
Usage:
used for medicine, vegetables, raw, marked finish machining and precision instruments, electronic instrument workshop purification equipment required, two, functions: air shower, clean workshop and form a complete set of the clean room equipment, when workers in workshop, through this equipment, with strong and clean air, remove the clothes and carry on the surface of the dust.
Parameter
| Size |
Air flow m3/h |
Wind speed m/s |
Initial resistance(Pa) |
Efficiency 0.3um |
Dust capacity (g) |
Weight (Kg) |
| 610*610*50 | 700 | 0.52 | ≤220 | ≥99.99% | 450 | ≈3 |
| 915*610*50 | 1100 | 0.52 | 700 | ≈4.5 | ||
| 1170*570*50 | 1300 | 0.52 | 860 | ≈5.6 | ||
| 1220*610*50 | 1400 | 0.52 | 930 | ≈6 | ||
| 610*610*69 | 1000 | 0.75 | 650 | ≈3.8 | ||
| 915*610*69 | 1500 | 0.75 | 950 | ≈6 | ||
| 1170*570*69 | 1800 | 0.75 | 1100 | ≈7 | ||
| 1220*610*69 | 2000 | 0.75 | 1250 | ≈8 | ||
| 610*610*80 | 1300 | 0.97 | 800 | ≈5 | ||
| 915*610*80 | 1900 | 0.97 | 1200 | ≈7.5 | ||
| 1170*570*80 | 2300 | 0.97 | 1400 | ≈8.8 | ||
| 1220*610*80 | 2600 | 0.97 | 1600 | ≈10 |
