1.2mm Stainless Steel SUS 304/ 201 Air Shower Tunnel With PVC Scroll Doors
Air Shower Tunnel description
It is a large air shower tunnel for material carts, adopt high speed shutter doors, which open and close the doors fastly, and it is save the space.
Air Showers are used to remove contaminate off personel and equipment as they enter a clean environment or exit a contaminated environment.
Air showers also create a protective barrier between the clean and contaminated areas.
Operation Instruction
1. Put air shower on the correct location, connect the power wires of air shower with the power wires,
There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.
2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.
2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.
2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,
then exit sliding door will be close automatically.
Roller door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. Non-contact induction switch
Air Shower Tunnel Parameter
| Quantity and specification | unit | remarks | ||
| Cabient | SUS304 stainless steel | |||
| Nozzles | 48-96 | pcs | ||
| Outlet air speed | ≥20 | m | ||
| Working time | 0—99 | S |
Adjustable
|
|
| Rated Voltage | 380 | V | 3 phase 4 wire | |
| Power | 2.25-10 KW | KW | 50Hz | |
| Hygienic standard | High efficiency | |||
| Noise | ≤65 | DB | ||
| External dimension | W*H 1700*2300 | Mm | ||
| Net size | W*H 800*1900 | Mm | ||
| Channel type | Seal type Tunnel type | |||
| Remarks |
Please inform us before the contract comes into effect.
|
|||

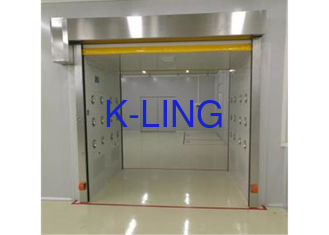

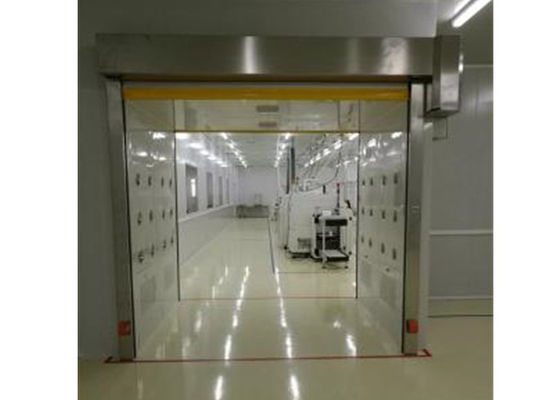

Air Shower Tunnel details photos
