| Door: | Auto Sliding Door | Speed: | More Than 22m/s |
|---|---|---|---|
| Control: | Auto Remote Control | Certification: | CE |
| Original: | China | Warranty: | 1 Year |
| High Light: | Stainless Steel Air Shower Tunnel,1.2mm Thickness Air Shower Tunnel,KEL-AS Air Shower Tunnel |
||
1.2mm Stainless Steel Air Shower Tunnel Infrared Auto Sliding Doors
Air Shower Tunnel description
System: Infrared Automatic reaction air showering system,
Interlock: Electric
Showering time: The 0-99 seconds adjustable (air showering time display)
Structure: Sliding doors by auto door system in panasonic brand
Brushless DC 24V 50W motor
Opening speed: 14-40 cm/s (adjustable)
Closing speed:13-38cm/s(adjustable)
Opening time: 0-9 s adjustable (With collision rebound function)
External frame: Stainless steel or coated cold-roll steel
Door, nozzle: stainless steel
Filter: Pre filter and hepa filter
Fan: Low vibration, low noise, imported or domestic fan
Winds: 20~28 m/s
Power: 220v/110v/380v
Optional: Protective crash fence or barriers at the sides of the entrance
Air Shower Tunnel Parameter
| Quantity and specification | unit | remarks | ||
| Cabient | SUS304 stainless steel | |||
| Nozzles | 48-96 | pcs | ||
| Outlet air speed | ≥20 | m | ||
| Working time | 0—99 | S |
Adjustable
|
|
| Rated Voltage | 380 | V | 3 phase 4 wire | |
| Power | 2.25-10 KW | KW | 50Hz | |
| Hygienic standard | High efficiency | |||
| Noise | ≤65 | DB | ||
| External dimension | W*H 1700*2300 | Mm | ||
| Net size | W*H 800*1900 | Mm | ||
| Channel type | Seal type Tunnel type | |||
| Remarks |
Please inform us before the contract comes into effect.
|
|||

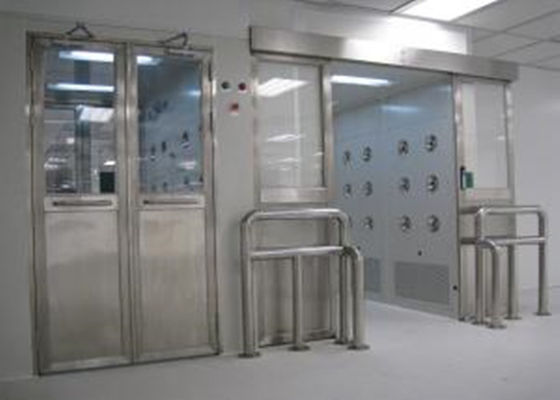

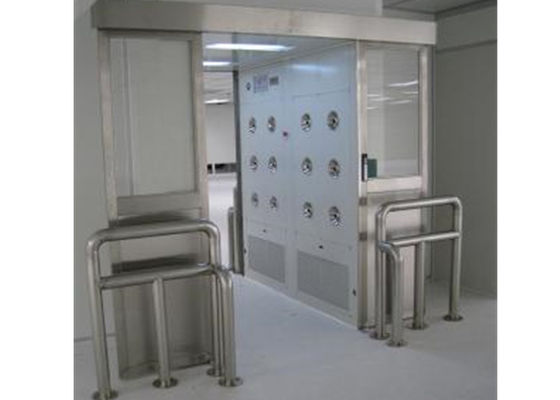

Air Shower Tunnel details photos
