| Name: | Filter Fan Unit/ FFU | Application: | Clean Room |
|---|---|---|---|
| HEPA Filter: | 99.99%@0.3um | Pre-filter: | G4 |
| Material: | Stailess Steel SUS304/201/316 /galvanized Sheet | Warranty: | 1 Year |
| High Light: | HEPA Filter Fan Unit,0.3 Micro Fan Filter Unit,ceiling mounted hepa filter unit |
||
Clean Room Ceiling Hepa Filter Fan Unit 99.99% High Efficiency 0.3 Micro
Introduction
FFU fan filter unit is mainly used for purify the air into the clean area to make sure it can reach requirement cleanliness class,
Uniform air wind blow out at a speed of 0.45m/s with adjustable speed ±20%..
FFU Fan Filter Unit which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional (laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
Material Data
Casing material: Galvalume sheet, stainless steel or aviation aluminum.
Fan: Domestic motor or imported motor.
Filter material: Ultra-fine fiberglass or PTFE.
Filter efficiency: H13~U17.
Sealing gasket: Sealing gasket in double air supply sides.
Temperature: Maximum 90°C in continuous service.
Feature
Suitable for Class 1-1000 clean room
Simple and light design,low height ,which can save space and is easily for installation and daily maintenance.
Unique inlet air channel ,Low vibration and noise
Uniform and steady air flow
High efficiency motor ,3 gear control ,low current consumption and electricity saving
Parameter
| Fan Filter Unit | ||||
| Model | KEL – FFU920 | KEL – FFU1175 | KEL – FFU1225 | |
| External size: (W*D*H)mm | 920X615X350 | 1175X575X350 | 1225X615X350 | |
| Air Flow | 900m3/h | 1000m3/h | 1200m3/h | |
| Construction | Stainless steel 304/aluminum/galvanized steel/steel with power coated | |||
| Air Velocity | 0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s | |||
| Control system |
| |||
| Pressure (pa) | 97 (10mm)Aq | |||
| Hepa Filter | Size(mm) | 915X610X69 | 1170X570X69 | 1220X610X69 |
| Efficiency | 99.99% @0.3um | |||
| Pressure | 180pa @0.45m/s | |||
| Power supply | 220/110V 50/60HZ | |||
| Fan power | 123W | 123W | 175W | |
| Noise | 52dB | 52dB | 52dB | |

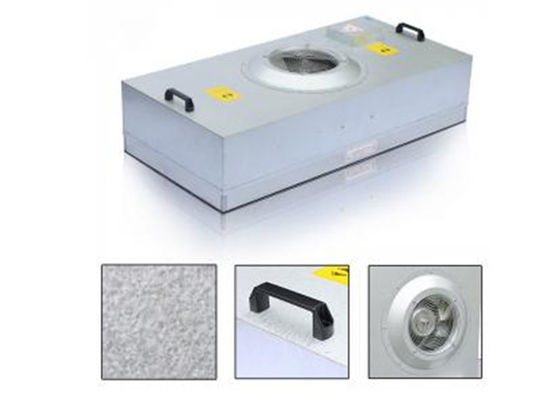

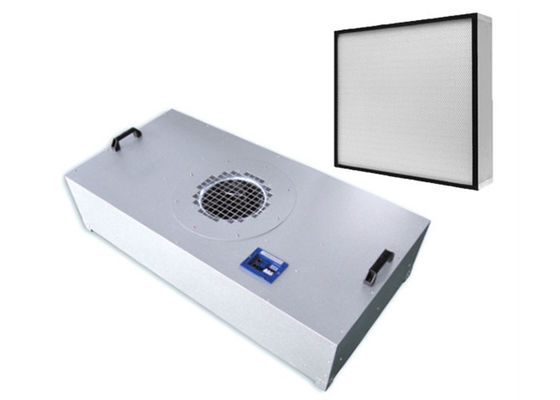

Display
