Product Details:
Payment & Shipping Terms:
|
| Power: | AC 220V/50HZ | Name: | Softwall Clean Room |
|---|---|---|---|
| Application: | Partial Purification | Design: | Free Design Drawing |
| Warranty: | 1 Year | Original: | China |
| High Light: | Partial Purification soft wall cleanroom,AC 220V softwall modular cleanrooms,partial purification Softwall Clean Room |
||

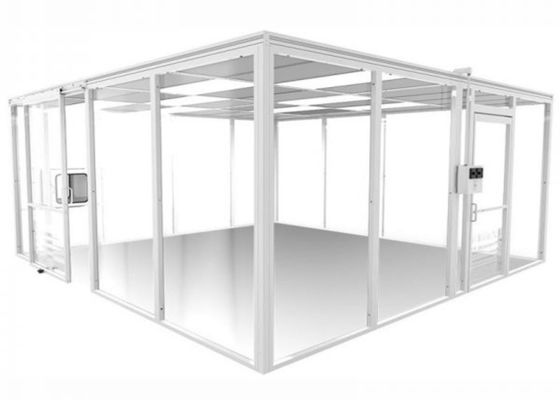

AC 220V Modular Clean Room Systems/ Softwall Clean Room For Partial Purification
Introduction
clean booth is the most quick and easy creation of a simple clean room,provide local high air purification areas to high-precision product assembly area.
the air inhaled by fan from the top though the primary filter, HEPA filtered, filtered clean air in the outlet side meet to 0.45m / s + -20% of the wind blowing into clean booth , forming equalizing laminar flow and vertical unidirectional flow clean air stream , ensuring the work area in required cleanliness.
Feature
Assembly structure , easy installation
Greatly shorten the delivery cycle
Removable
Easy to raise the Cleanroom level
Easy to expand the cleanroom area
Effective internal space available
Low cost, fast construction and no floor height limit
Totally customized to meet your demand
Parameter
| TYPE | SOFTWALL CLEAN BOOTH | HARDWALL CLEAN BOOTH |
| Wall Material | Anti-static soft PVC wall curtain 106~109Ω | Anti-static acrylic 106~109Ω |
| Cleanliness | From Class 100 to Class 10,000 | |
| Frame Material | Coated steel, anodized aluminum, Stainless Steel | |
| FFU | 2'X4' Galvalume in standard size ,110/220v AC 50/60 hz | |
| HEPA Filter | H14 Hepa filter 99.997% 0.3micro | |
| Lighting | Available in LED and T5 | |
| Air condition |
For your requirement, Available in constant temperature air conditioner /constant temperature and humidity conditioner |
|
Why Choose US
We are cleanroom designer and manufacturer, and we have a R&D department,and have our own factory. Also we have some long-time cooperated suppliers. For the whole dust free project, from design until the dust free plant installation,we will do one-stop service for you,and we will keep one year after sales service for your cleanroom project. Otherwise, all equipment for cleanroom we are provide for you,cleanroom booth, cleanroom air shower, cleanroom pass box, fan filter unit(FFU), clean bench, weighing booth ect.
