| Structure: | Reverse Type | Efficiency: | H13/H14 |
|---|---|---|---|
| Application: | Hospital / Pharmaceutical | Certification: | CE |
| Warranty: | 1 Year | Original: | China |
| High Light: | Reverse HEPA Air Filter,Pharmaceutical HEPA Air Filter,Liquid Sealed HEPA Air Filter |
||

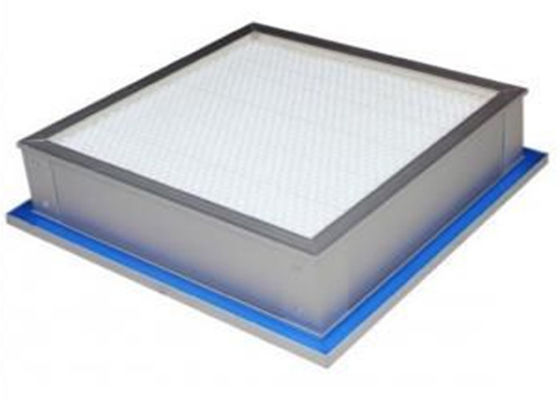

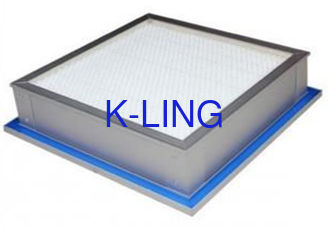

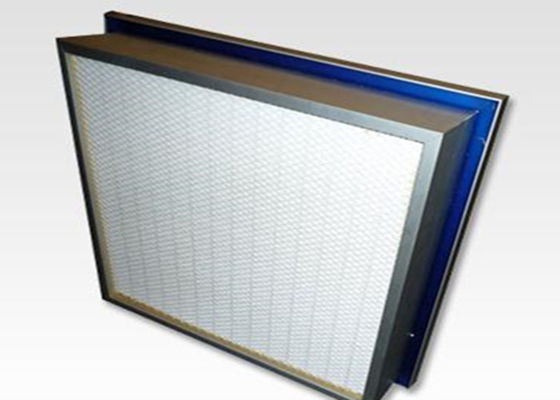

Reverse Liquid Sealed High Efficiency Filter/ HEPA Filter For Hospital / Pharmaceutical
Description
The liquid tank sealed high-efficiency air outlet is an efficient air outlet with a liquid sealable type with replaceable hepa filter. The liquid tank sealed high efficiency air outlet (Pharmagel) is widely used in hospitals, biopharmaceuticals, semiconductors, liquid crystal manufacturing, precision machinery, Optical and other technical fields.
The surface of the box is electrostatically sprayed and has strong corrosion resistance. The tank seal design further enhances its uniqueness.
Features:
1) High sealing performance, good leak tightness.
2) Easy installation, high efficiency, low resistance, low operating costs.
3) The unique liquid tank sealing method can be used with the self-contained PAO dust outlet and concentration sampling port standard size FFU, and the high efficiency air outlet is used. Completely meets new GMP-E requirements.
Application
1) Widely used in demanding clean workshops, large area vertical laminar flow, 100 laminar flow hoods and HEPA high efficiency filter installation
2) Applicable to pharmaceuticals, hospitals, food hygiene, microbiology and other high grade sealed air purification end.
3) Widely used in demanding clean rooms, large area vertical laminar flow, 100 class laminar flow hoods, biological safety cabinets, biotechnology, laboratories, sterile rooms, pharmaceutical factories, research institutes and other high cleanroom requirements.
Filter structure:
Filter media: Glass fiber filter paper
Frame material: Aluminum alloy frame (Thickness:70mm/80mm/93mm)
Sealant: Polyurethane glue
Separator: hot melt adhesive
Sealing Strip: Blue Liquid Tank Sealing Jelly
Sealing mode: side tank and top tank
Temperature resistance: 80°C, moisture resistance: 80%
Parameter
| Size |
Air flow m3/h |
Wind speed m/s |
Initial resistance(Pa) |
Efficiency 0.3um |
Dust capacity (g) |
Weight (Kg) |
| 610*610*50 | 700 | 0.52 | ≤220 | ≥99.99% | 450 | ≈3 |
| 915*610*50 | 1100 | 0.52 | 700 | ≈4.5 | ||
| 1170*570*50 | 1300 | 0.52 | 860 | ≈5.6 | ||
| 1220*610*50 | 1400 | 0.52 | 930 | ≈6 | ||
| 610*610*69 | 1000 | 0.75 | 650 | ≈3.8 | ||
| 915*610*69 | 1500 | 0.75 | 950 | ≈6 | ||
| 1170*570*69 | 1800 | 0.75 | 1100 | ≈7 | ||
| 1220*610*69 | 2000 | 0.75 | 1250 | ≈8 | ||
| 610*610*80 | 1300 | 0.97 | 800 | ≈5 | ||
| 915*610*80 | 1900 | 0.97 | 1200 | ≈7.5 | ||
| 1170*570*80 | 2300 | 0.97 | 1400 | ≈8.8 | ||
| 1220*610*80 | 2600 | 0.97 | 1600 | ≈10 |
