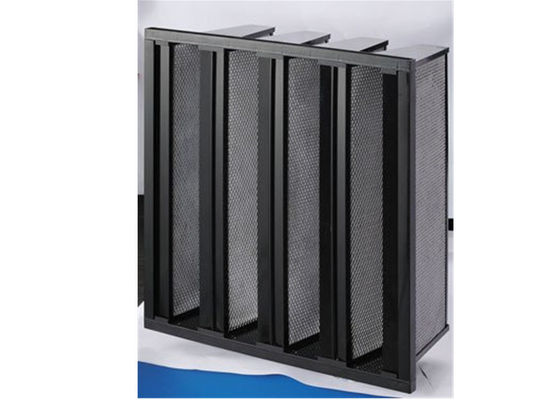

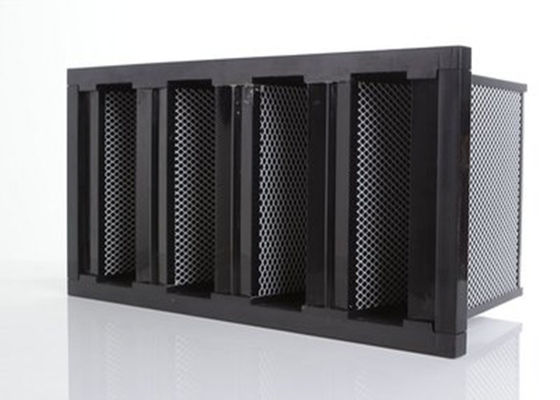

High Capacity V Bank Filter Activate Carbon Filter Remove VOCs CO2

High Capacity V Bank Filter Activate Carbon Filter Remove VOCs CO2
High Capacity V Bank Filter Activate Carbon Filter Remove VOCs CO2 High Capacity V Bank Filter Activate Carbon Filter Remove VOCs CO2

Large Image :  High Capacity V Bank Filter Activate Carbon Filter Remove VOCs CO2

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set/ month
Detailed Product Description
Application: Remove VOCs And CO2 Type: Activate Carbon Filter
Structure: V Bank Certification: ISO
Original: China Warranty: 1 Year
High Light:

Remove VOCs V Bank Filter

,

400Pa V Bank Filter

,

Remove CO2 V Bank Filter

High Capacity V Bank Filter Activate Carbon Filter Remove VOCs And CO2







Description:



The High Capacity Activated Carbon Filters removal of gases, vapors and odors in make-up and recirculated air in cleanrooms and other applications is taking on new significance to provide the required level of air quality for products, processes and people. KEL filters offer the latest technology in AMC control not only in low level concentrations, but also for intermittent spikes of higher concentrations up to 5ppm.
Process deisgner, facilities engineers and quality control managers in critical manufacturing industries, such as microelectronics, cleanrooms and pharmaceuticals are becoming increasingly sensitive to the need for chemical filtration to remove low level concentrations of gases, refereed to as Airborne Molecular Contamination.

Sealed Carbon Media Provide Clean Product, No Carbon Dusting

KEL media consists of a very fine granular carbon (90% activity) with 600 grams per square meter. The granulars are bonded to a fine PP PET fiber substrate which is sealed within a sleeve of spun bonded synthetic scrim to prevent carbon dusting. No post filter is needed to contain particle shedding often associated with carbon filters.




Specifications:


Nominal Size: 24" x 24" x 12"

Nominal Size: 20" x 24" x 12"
Nominal Size: 12" x 24" x 12"
Actual Size(WxHxD): 595x595x292mm
Actual Size(WxHxD): 595x287x292mm
Actual Size(WxHxD): 287x595x292mm





Description:



Media: Sandwich PP PET + Activated Carbon
Separator:Hot-melt beads
Frame: GI;Plastic
Efficiency: MERV 13
Initial resistance: 110 Pa
Recommended final pressure drop : 400Pa
Humidity resistance: 100%
Max Temperature: 80 ℃
Sealant: Polyurethane rubber PU
DIN 53438 Flammability: F1
UL 900 Standard : Class 2
Max.air flow rate: 125% of rated air flow
Gasket: one piece half round continuous gasket
Available in Box or Single flange type.





Competitive Advantage:



High carbon loading
High activity carbon
Low initial resistance.
Clean operation, lowest carbon shedding
Low energy consumpation
Easy to retrofit with standard filter hardware.
