Product Details:
Payment & Shipping Terms:
|
| Filter: | Mini Pleat Hepa Filter | Frame: | Aluminum Frame |
|---|---|---|---|
| Efficiency: | 99.99%@0.3um | Feature: | Replacement Hepa Filter |
| Warranty: | 1 Year | Original: | China |
| High Light: | Aluminum Frame Hepa Ceiling Module,Mini Pleat Hepa Ceiling Module |
||

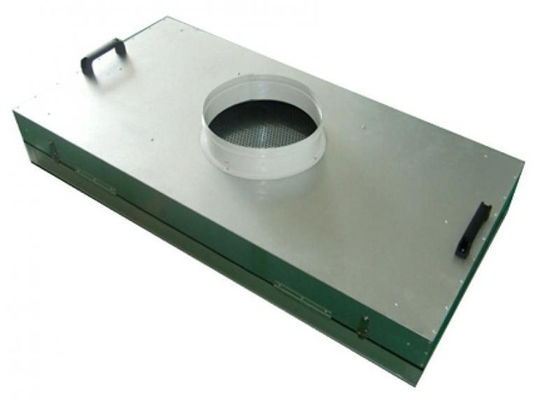

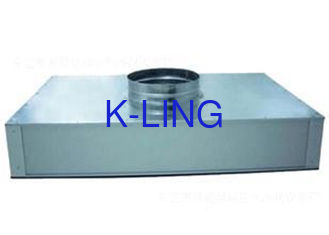

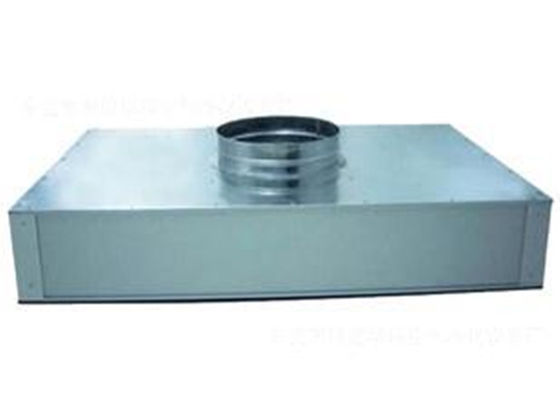

Aluminum Frame Mini Pleat Hepa Filter Replacement HEPA Filter / Ceiling Hepa Module
Application:
Used for the relatively high level of class 100,1000 air purification system of the terminal filter air feeding device.
Description:
The KEL pleated filter pack is sealed in an anodized aluminum frame that contains a gelled channel to insure a leak free, tight seal. The filter element is protected by an anodized aluminum housing and diffuser screen, with a damper control and challenge port for the measurement of challenged aerosol. An anodized extruded aluminum center divider with access port provides access for adjustment of the distribution plate and measurement of the resistance and challenge aerosol. A painted expanded metal faceguard on the downstream side protects the media.
Model,dimensions and parameters:
| Dimensions(mm) | Rated a ir flow @0.45m/s |
Initial Resistance Under Standard air flow | |||||
| HEPA | ULPA | ||||||
| A | B | C | M3/h | In.W.G. | Pa | In.W.G. | Pa |
| 600 | 600 | 150 | 600 | 0.50 | 125 | 0.58 | 145 |
| 600 | 915 | 150 | 900 | 0.50 | 125 | 0.58 | 145 |
| 600 | 1210 | 150 | 1200 | 0.50 | 125 | 0.58 | 145 |
| 600 | 600 | 220 | 600 | 0.32 | 80 | 0.36 | 90 |
| 600 | 915 | 220 | 900 | 0.32 | 80 | 0.36 | 90 |
| 600 | 1210 | 220 | 1200 | 0.32 | 80 | 0.36 | 90 |
| Operation temperature | 80 celsius degree(158F),aluminum foil,fiberglass,and insulated cotton enclosed on the back. | ||||||
| Cabinet | Sand acid and pressed aluminum,standard frame | ||||||
| Sealed material | The seal spacer is installed on the air outlet unless clients require not. | ||||||
| The positioning of protective net | Air leaving side | ||||||
| Filtering paper | High efficiency particulate air filters(fiberglass paper,0.3 micron,efficiency of 99.99%) | ||||||
| Options | Ulpa Air Filter(waterproof fiberglass,0.3micron,efficiency of 99.9995%) | ||||||
| Smooth outline | |||||||
| No protective net | |||||||
| Separator and airflow controller | |||||||
| Adjustable diffuser plate with separator | |||||||
| 300mm(12'')adapter tube of air supply | |||||||
Advantages:
1. Aluminium frame and cover are antirust.
2. By standard diffuse mesh ,the airflow will be fluent.
3. Inlet tube could prevent loss of air.
4. Use special resin of without phosphorus to seal the media and frame absolutely.
5. Do not allow for break up and blocking of wind velocity.
