| Blowing: | Three Side Blowing | Door: | Auto Sliding Door |
|---|---|---|---|
| Material: | SUS 304/ Powder Coated Steel | Cleanliness Level: | Class 100 |
| Warranty: | 1 Year | Original: | China |
| High Light: | Auto Sliding Door Air Shower Tunnel,Three Side Blowing Air Shower Tunnel,Class 100 Air Shower Tunnel |
||

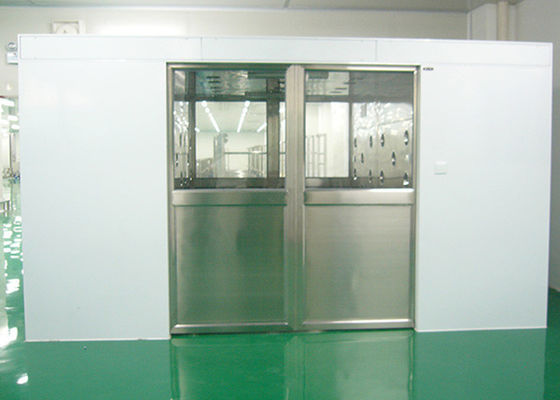

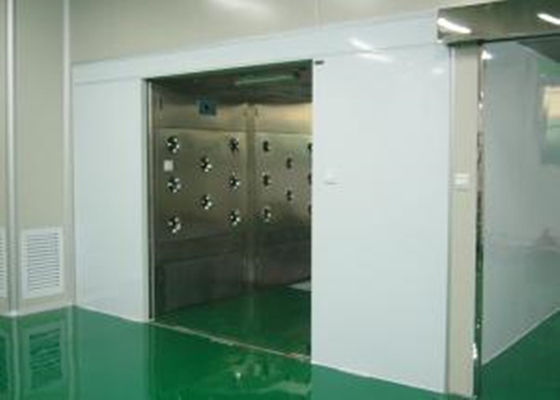

Three Side Blowing Auto Sliding Door Air Shower Tunnel Class 100 Cleanliness Level
Doors:Automatic Double Leaf Sliding Doors
Door Size: 1800mm x2100mm
Description:
Cargo Cleanroom Air Shower Tunnel for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
Features:
1. Completely self-contained, pre-wired, fully equipped Air Shower Tunnel systems help solve decontamination problems.
2. Modular design lets you order a system to suit your cleanroom.
3. HEPA filter/blower modules (rated 99.97% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles.
4. Solid-state microprocessor panel provides programmable control over access door operation.
5. Electromagnetic interlocking doors minimize contamination and automatically release in the event of power failure or when the emergency stop button is pressed.
6. Energy-efficient LED lighting mounted on the ceiling.
7. Available in white powder-coated or stainless steel to meet various cleanroom requirements
8. Variety of sizes and door configurations
9. Economical to operate and easy to maintain
10 An ionizing bar is available as an optional accessory.
Parameter:
| Model | AS-3800T-2.6-AD |
| External dimensions (mm) | W3800*D2600*H2300MM |
| Internal dimensions mm | W1800*D260*H2100MM |
| Doors | 2 sets of SS double-leaf sliding doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | People and Goods |
| Nozzles | 16+16+18=54 PCS(3-side blowing) |
| Blower fan | 6 sets |
| Blow power(W) | 2400W |
| Weight(kg) | Appro.1000 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 6 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 3x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
