Product Details:
|
| Type: | U Type | Name: | Air Shower Tunnel |
|---|---|---|---|
| Certification: | CE | Warranty: | 1 Year |
| Material: | SUS 304/ Powder Coated Steel | Application: | Medical Industry Clean Room |
| Highlight: | U Type Automatic Air Shower Tunnel,Industry Cleanroom Air Shower Tunnel,auto U Type air shower room |
||

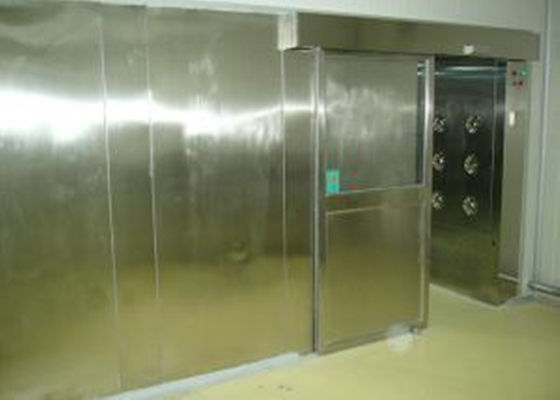

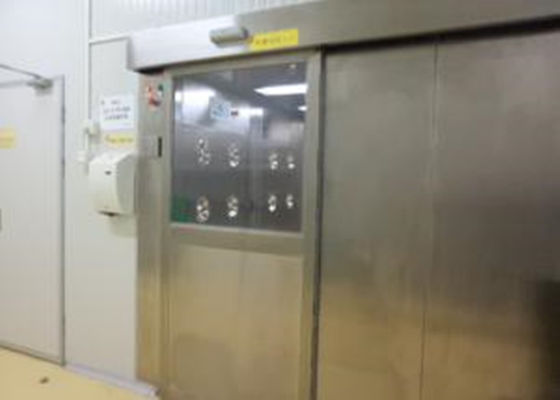

Customized U Type Automatic Air Shower Tunnel For Medical Industry Cleanroom
Air Shower tunnel is a kind of partial clean equipment with rather strong universality and is installed at the
partition between the clean and non-clean room, which is used for many people and material at the same
time to enter for blowing.
After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
This air shower tunnel of which automatic sliding door is convenient for people entering air shower room,
as well to reduce the enter time.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
Standard Features:
1. Large Airflow and Low Noise Blower fan
2. Neoprene vibration isolator for blower
3. 99.99% 0.3 micron HEPA filter
4. Stainless Steel adjustable air nozzles
5. MEVR 7 pre-filters located at the botton of the wall for easy access
6. Electric door interlock 12DV with 50kg holding force.
7. Emergency stop station (Shutts off blower and turns off locks)
8. Commercial duty door closers.
9. LED light fixture.
10. Pre-wire control panel with non-fused disconnect switch, tranfermers, motor starter with short circuit and overload protection and fused and circuit breaker.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Material for casing | T=1.2MM Full SS304 for External and internal cabinet |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | Single leaf |
| Door type | Sliding doors |
| Blowing way | 2-side blowing |
| Control system | English intelligent control panel with human voice |
| Locks | Electric mortise lock |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
