Product Details:
Payment & Shipping Terms:
|
| Material: | As Customer Requirment | Size: | Customized |
|---|---|---|---|
| Design Drawing: | Free Design Drawing | Cleanliness Level: | ISO 8/ Class 100000 |
| Name: | Softwall Clean Room/ Clean Booth | Warranty: | 1 Year |
| High Light: | Class 100000 Clean Room Booth,ISO 8 Clean Room Booth,Class 100000 softwall Clean Room |
||

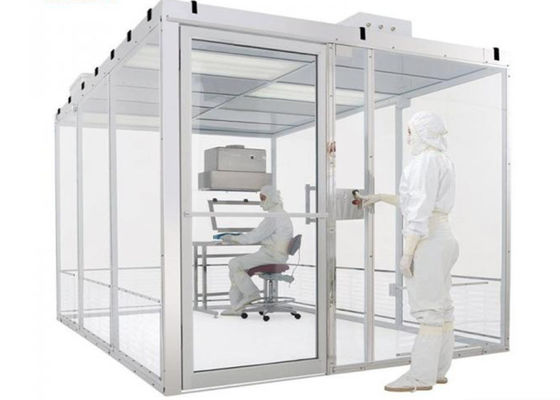

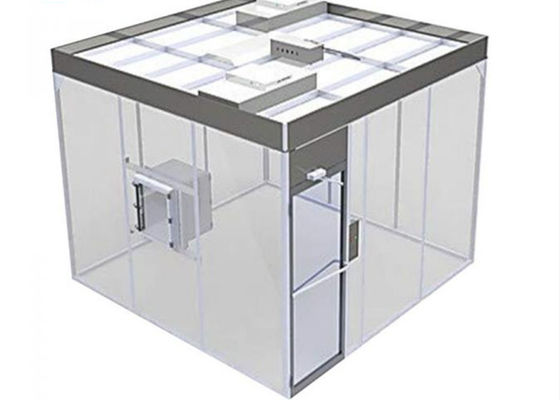

Free Design Drawing ISO 8 Clean Room Booth / Class 100,000 Softwall Clean Room
Introduction
Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and spacecollocation, it can be designed as request.
Feature
Simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.
FFU(Fan Filter Unit) which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for clean room applications. Microprocessor Control Users can control the fan, light, UV and adjust the air velocity with it.
Clean room level
| Level | Maximum Particles/m3 | Equivalent | |||||
| ≥0.1 μm | ≥0.2 μm | ≥0.3 μm | ≥0.5 μm | ≥1 μm | ≥5 μm | ||
| ISO 1 | 10b | d | d | d | d | e | |
| ISO 2 | 100 | 24b | 10b | d | d | e | |
| ISO 3 | 1000 | 237 | 102 | 35b | d | e | Class 1 |
| ISO 4 | 10000 | 2370 | 1020 | 352 | 83b | e | Class 10 |
| ISO 5 | 100000 | 23700 | 10200 | 3520 | 832 | d,e,f | Class 100 |
| ISO 6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | Class 1,000 |
| ISO 7 | c | c | c | 352000 | 83200 | 2930 | Class 10,000 |
| ISO 8 | c | c | c | 3520000 | 832000 | 29300 | Class 100,000 |
| ISO 9 | c | c | c | 35200000 | 8320000 | 293000 | Room Air |
Specification Table
| Area | 15㎡ | 30㎡ | 50㎡ | 100㎡ |
| Material | Aluminum frame/Baking steel plate/lnsulating glass window | |||
| FFU class 1-100 | 12pcs | 24pcs | 48pcs | 96pcs |
| FFU class-1K | 3pcs | 6pcs | 9pcs | 18pcs |
| FFU class-10K | 2pcs | 4pcs | 6pcs | 12pcs |
| Speed (m/s) |
0.45m/s ±20% | 0.45m/s ±20% | ||
| Temperature (optional) |
18-28°C | |||
| Humidity (opiional) |
50-70% | 50-70% | ||
| Illumination | 400-800LUX | |||
| Power | 2.4-7kw | 4.8-10kw | 9.6-19kw | 19.2-30kw |
Application
GCC prefab cleanroom projects cover in pharmaceutical plants, laboratories, testing centers, dust free production workshops, precision machinery industry, hospitals, electronics factories, semiconductor factories, microelectronics workshops, electrical appliances workshops, etc.
Our advantage
We focus on all kinds of solutions for prefab cleanroom. If you are unsure of what tpye of prefab cleanroom you may need for your particular project, please feel free to contact us. We will provide a best solution according to your requirement.
