Product Details:
Payment & Shipping Terms:
|
| Application: | Eradicate Odor | Material: | Synthetic Fiber Filter |
|---|---|---|---|
| Type: | Mini-pleat Filter | Color: | Black |
| Warranty: | 1 Year | Original: | China |
| High Light: | 80%RH Activated Carbon Filters,Eradicate Odor Synthetic Fiber Filter |
||

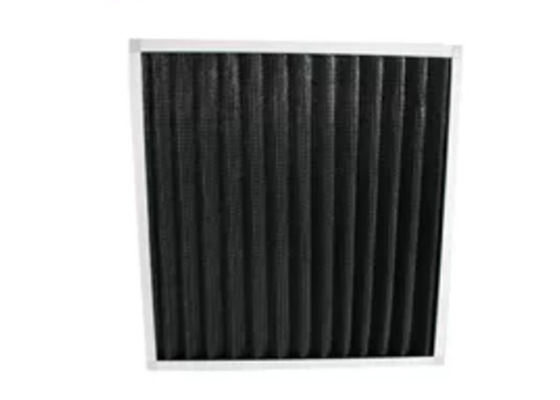

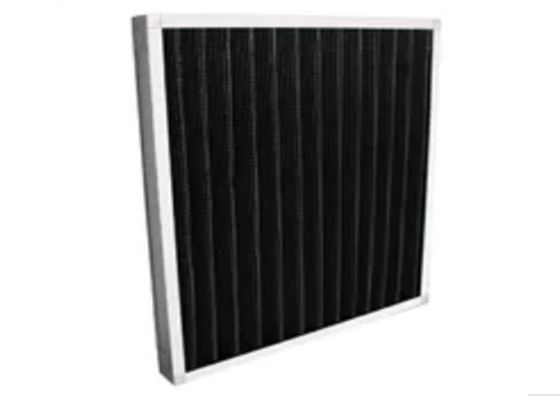

Eradicate Odor Synthetic Fiber Filter /Mini - Pleat Activated Carbon Filters
Description
Activated carbon fiber (ACF) is a highly efficient adsorbent material with developed microporous structure, heat resistance and acid and alkali resistance.
Using ACF as an activated carbon fiber filter to purify the adsorbent material, it can be used as a plate type bag-type activated carbon primary and intermediate air filter, which has good adsorption and killing ability to toxic gases and harmful bacteria in the air, and can effectively Remove dust, moisture and various harmful odorous substances from the air to make the air clean and fresh.
Activated carbon fiber is used for solvent recovery in semiconductor work and household appliances in solvent recovery, and it can also recover organic compounds from other exhaust gases. It is suitable for treating organic wastewater that is difficult to biodegrade, such as phenol, pesticide, sulfuric acid, etc., and can also be used in the treatment of circulating water, naphthenic acid and comprehensive wastewater in pharmaceutical plants, printing and dyeing plants and refineries.
Material and Performance
| Frame Material | Cardboard frame, Aluminum frame |
| Filter medium | Granular active carbon |
| Sealant | Polyurethane adhesive |
| Partition | Hot melt adhesive |
| Max. humidity | 80%RH |
| Max. temperature | 80°C |
Parameter
| Model | Nominal Size WxHxD(inch) |
Actual Size WxHxD(mm) |
| KEL-AS-1 | 11-3/5 x 24 x 1 | 290x595x22 |
| KEL-AS-2 | 11-3/5 x 24 x 2 | 290x595x45 |
| KEL-AS-3 | 24 x 24 x 2 | 595x595x45 |
| KEL-AS-4 | 24 x 20 x 2 | 595x495x45 |
| KEL-AS-5 | 24 x 12 x 2 | 595x295x45 |
| KEL-AS-6 | 20 x 20 x 2 | 495x495x45 |
| Special size can be customized according to customer's request | ||
Activated carbon air filter features
* High content of activated carbon, 70-90%
* Great ability to capture microorganisms such as germs, viruses, bacteria, benzene, ammonia
* Help purify the air and prevent diseases
* High efficiency of absorption
* Large filtering surface
* Low resistance
* Durable and long service life
* Captured particles won't be released back to the air again
* Different dimension and design available
Application
In the activated carbon filter, activated carbon is a very fine carbon particle with a large surface area, and there are finer pores in the carbon particle - capillary. This capillary has a strong adsorption capacity and is sufficiently in contact with gas (impurities) because of its large surface area. When these gases (impurities) hit the capillary, they are adsorbed and purify.
Used in chemical raw material gas, chemical synthesis gas, pharmaceutical industry gas, carbon dioxide gas for beverages and purification of hydrogen, nitrogen, chlorine, hydrogen chloride, ozone, ethylene, ethane, butane, cracked gas, inert gas, etc. Purification of gas, etc. It is also used to remove pollutants from the air and to separate and purify the mixed gas. It can also be used for disinfection and filtration of gas masks and protective equipment.
