Product Details:
|
| Name: | V Bank Air Filter | Size: | 610*610*295mm Or Customize |
|---|---|---|---|
| Initial Pressure: | ≤ 120pa | Final Pressure: | 400pa |
| Efficiency: | F7-F9 | Warranty: | 1 Year |
| Highlight: | F7-F9 pocket air filter,V Bank Pocket Air Filter,4500 m³/h V Bank Air Filter |
||

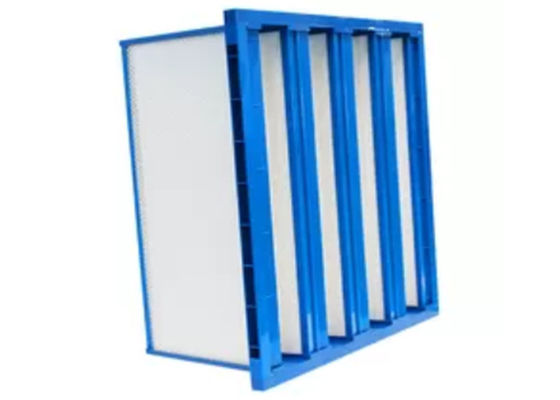

Plastic Frame V Bank Pocket Air Filter Medium Efficiency With High Air Volume
Parameters:
| Model | Out Dimension (W*H*D)mm |
Divisions no |
Air volume (m³/h) |
Filrer area (㎡) |
Dust holding Capacity(g) |
Initial Pressure (0.5m/s) |
Final Pressure |
Efficiency |
| KEL-FV-102 | 595*595*295 | 3 | 2800 | 16.2 | 1460 | ≤120pa | 400pa | PP 85%@0.5μm |
| KEL-FV-103 | 595*595*295 | 4 | 3700 | 21.6 | 1950 | |||
| KEL-FV-104 | 610*610*295 | 5 | 4700 | 27.7 | 2490 | |||
| KEL-FV-107 | 595*595*295 | 3 | 2600 | 16.2 | 1430 | ≤120pa | 400pa | PP 99%@0.5μm |
| KEL-FV-108 | 595*595*295 | 4 | 3500 | 21.6 | 1900 | |||
| KEL-FV-109 | 610*610*295 | 5 | 4500 | 27.7 | 2440 | |||
| KEL-FV-112 | 595*595*295 | 3 | 2900 | 17.8 | 1570 | ≤120pa | 400pa | PP 99%@0.5μm |
| KEL-FV-113 | 595*595*295 | 4 | 3600 | 23.8 | 2090 | |||
| KEL-FV-114 | 610*610*295 | 5 | 4900 | 30.4 | 2680 |
Features
Adopt ABS plastic frame, which has large effective filtering area, small resistance, light weight, large capacity and high air volume.
When ABS is incinerated, no toxic gas is generated, which is beneficial to environmental protection or disposal.
Can be used as the pre-filtration for high efficiency air filter with mounting flange frame (25mm thick).
Interchangeable with the commonly used bag filters to extend the service life of high efficiency air filters.
No dust-free capacity without partition design, filter block with compact "V" type.
The construction is strong to ensure good performance under turbulent conditions, and the two-way filter material can be adapted to the design of the front or the opposite side. Long filter life, reduced replacement and maintenance costs, saving operating costs and energy.
High air volume type with large filtering area, large dust holding capacity, high air volume and small space.
Application
Main filter for clean use, commercial and industrial ventilation and air conditioning systems.
High humidity ventilation system.
Variable air volume ventilation and air conditioning system.
Install a tight ventilation system.
Electronic technology, medical and health, bio-pharmaceutical, food and beverage, mechanical and electrical engineering equipment, precision instruments, metallurgical chemicals, painting, air conditioning, printing, environmental protection industries, etc.
Air-conditioning end air supply for dust-free purification workshops in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, film and fiber optic equipment, and PCB printing.
