KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Type: | Pleated Panel Filter | Name: | Activated Carbon Filter |
|---|---|---|---|
| Funcation: | Eliminate Peculiar Smell | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | Activated Carbon Deodorizer Air Filter,CE pleated panel filter |
||

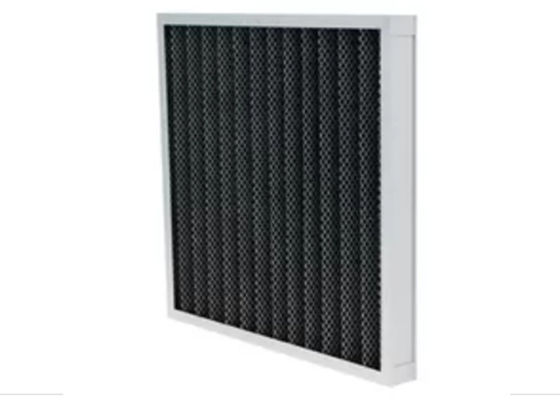

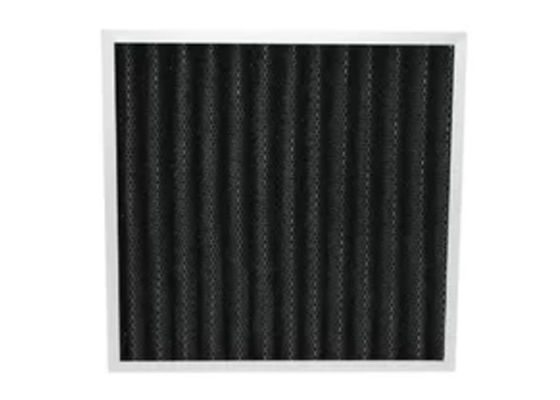

Eliminate Peculiar Smell Pleated Panel Activated Carbon Deodorizer Air Filter
Active carbon plate filter use for:Airport,Subway,Auto ,electronic factory,home use,hospital and so on.
Introduction
Actived carbon platetype filter can be used aluminum frame ,galvanized box,stainless steel frame,the thickness can be produced according to customer's requirements,the use of high-quality filter actived carbon filter or carbon filber can be expanded area pleated production process can also be flate making actived carbon plate filter installed ,due to its own structure,but also has a large amount of dust and a lower resistance in addition to.
Notice:
- Filst remove the dust in the air and other large dust particles.
- The passage of air through the activated carbon layer should be more then 0.1 seconds.
- Air relative humidity should be less than 80%.
- Air relative temperature should be under 50℃.
- Periodic replacement.
Parameter
| Dimension (inchs) |
Out Dimension (mm) |
Air volume (m³/h) |
Resistance pa |
Frame | Filter Material | Absorb ability | Deodorant |
| 12*12*1 | 295*295*21 | 800 | 55 | Aluminum alloy Galvanized palte |
Active felt； Active carbon fiber |
Benzene absorb 30% lodine absorb capacity ＞80% |
Ethyl Mercaptan:30 TYpe remove efficiency ＞80% |
| 12*20*1 | 295*495*21 | 1300 | |||||
| 16*20*1 | 395*495*21 | 1750 | |||||
| 12*24*1 | 295*595*21 | 2200 | |||||
| 24*24*1 | 595*595*21 | 3200 |
