Product Details:
|
| Name: | Dispensing Booth | Other Name: | Sampling Booth |
|---|---|---|---|
| Application: | Pharmaceutical Industry | Material: | SUS 304/ 316L |
| Original: | China | Warranty: | 1 Year |
| Highlight: | Pharmaceutical Clean Room Sampling Booth,SUS Cleanroom Dispensing Booth |
||
Dispensing /Sampling Booth For Weighing In Pharmaceutical Industry Cleanroom
Introduction
Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.
Feature
1. Customized design is welcome.
2. Noise level: 57-65dB
3. Power supply: 110V-220v/50-60HZ. 380V/50HZ
4. Material: Stainless steel
Standard Model Technology Parameter:
1. Smooth transitions of wall and ground can eliminate the blind angle.
2. Differential pressure gauge is equipped to real-time monitor the filters.
3. Intelligent control mode and alarm system ensure the reliability of running.
4. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
5. Uniform flow design of main working area can protects the operators and prevent environmental pollution
and cross contamination of products.
Parameter
| Model | KEL - DB1000 | KEL - DB1500 | KEL- DB2000 |
| External size (W*D*H)mm | 1100X1300X2650 | 1600X1800X2650 | 2100X2300X2650 |
| Internal size (W*D*H)mm | 1000X1000X2150 | 1500X1500X2150 | 2000X2000X2150 |
| Cleanliness | Class 100 | ||
| HEAP Filter | 99.995% @0.3um | ||
| Pre-Filter | 75% @5um | ||
| Air Velocity | 0.3-0.6m/s | ||
| Noise | 57-65 dB | ||
| Material | Stainlesst Steel 304 / 201 | ||
| Standard | ( FS209E ) USA | ||
| Power | 380V/ 50HZ | ||

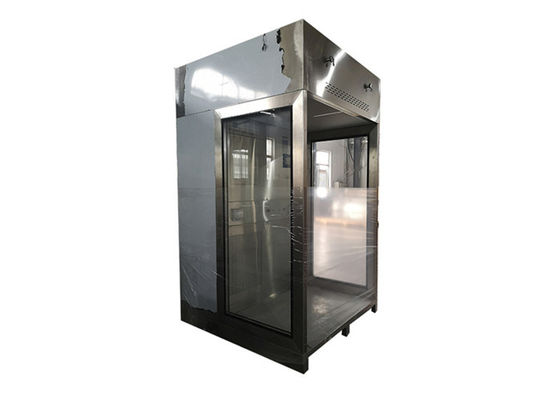

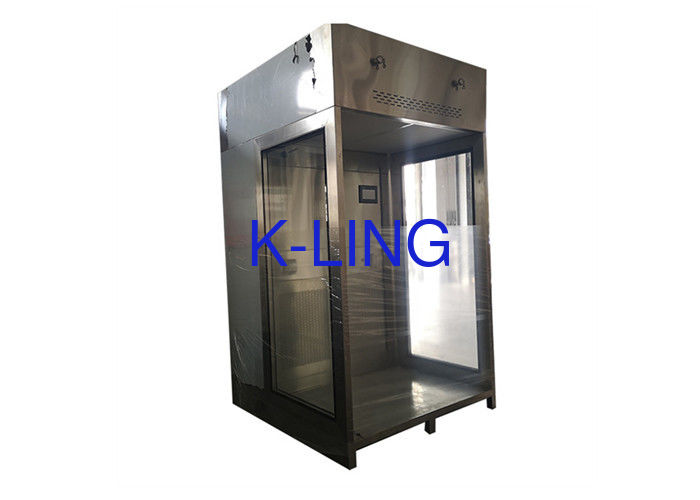

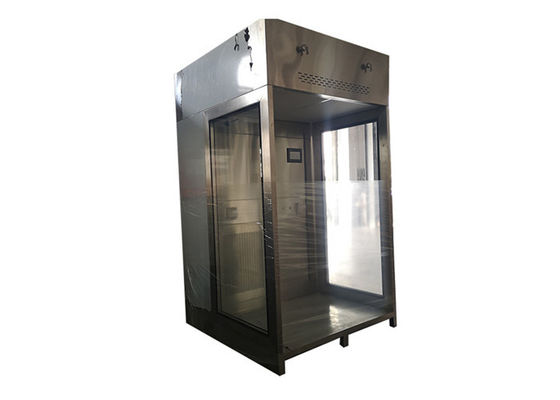

Picture show
