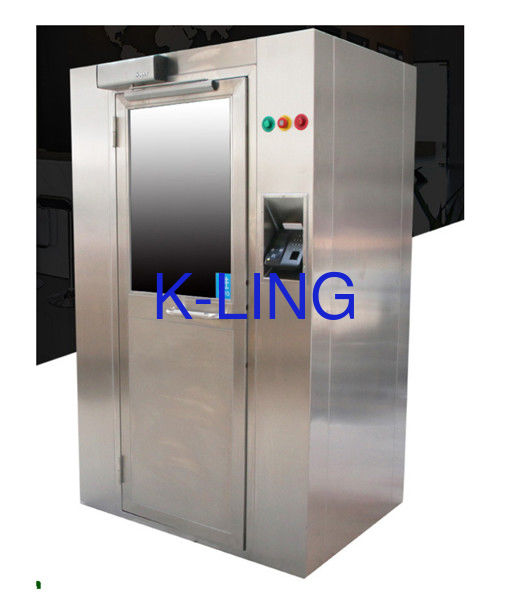

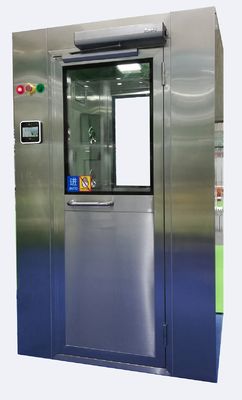

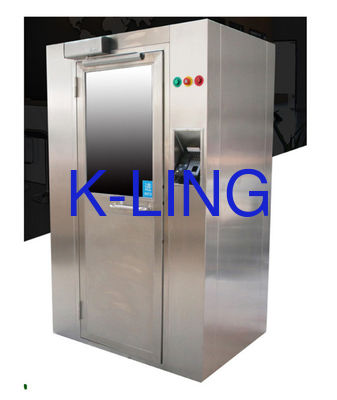

Product Details:
|
| Name: | Laboratory Air Shower | Purification Rank: | Class 1000 |
|---|---|---|---|
| Control System: | PLC Control System | Door: | PVC Automatic Roller Door |
| HEPA Filter: | 610x610x69mm | Per-filter: | 715x350x17mm |
| Air Speed: | More Than 24m/s | Other Name: | Microprocessor Control Air Shower |
| Type: | High Purfication Air Shower | ||
| Highlight: | Face Recognition air shower room,High Purfication Rank air shower room,Class 1000 air shower unit |
||
Quicky detail
External Size: 1300x6000x2180mm
Internal size : 800X5880X1910mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 20-50 person
SUS nozzle:72pcs
Blower way: two side blower
Air speed :>25m/s
Power: 380V/50HZ or 380V/60HZ
Introduction:
The greatest source of particulate contamination in a clean room is the operator air shower tunnel are installed between change areas and the clean room, the air shower enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower, after you pass the air shower tunnel
Applications:
it can be widely used in electronics,precision instrument,food,pharmacy and scientific research fields.
operating features :
1 : PCL control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
Parameter:
|
KEL-AS1300T-6 Air Shower Tunnel |
||
|
MODEL |
KEL-AS1300T-6 |
|
|
External size (mm) (WXDXH) |
1200x6000x2180mm |
|
|
Work zone (mm) (WXDXH) |
800x5880x1910mm |
|
|
Persons per cycle |
6-50 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
|
Air shower direction |
Two side with blowing |
|
|
Material (Option) |
1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. |
|
|
Control system |
1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark. |
|
|
The power of Fan |
380V/50HZ/750W (6 set) |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|
|
Fan run (r/min) |
2800r/min |
|
|
Nozzle in stain less steel |
72 pcs |
|
|
Wind speed(m/s) |
23-29m/s |
|
|
Noise level(dB) |
<62dB |
|
|
LED Fluorescent Lamp |
20wx6 |
|
|
HEPA Filter |
Size(mm) |
630X630X69mm |
|
Efficiency |
99.99%@0.3um |
|
|
Air velocity |
1000(m3/h) |
|
|
Initial resistance(pa) |
<220pa |
|
|
Pre-filter |
Size(mm) |
775x380x17 |
|
Efficiency |
75% @ 0.5um |
|
|
Resistance(pa) |
<30 Pa |
|
|
Electrical |
Power supply |
380v/50Hz |
|
Net power(kw) |
0.75X6 kw |
|
Customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
