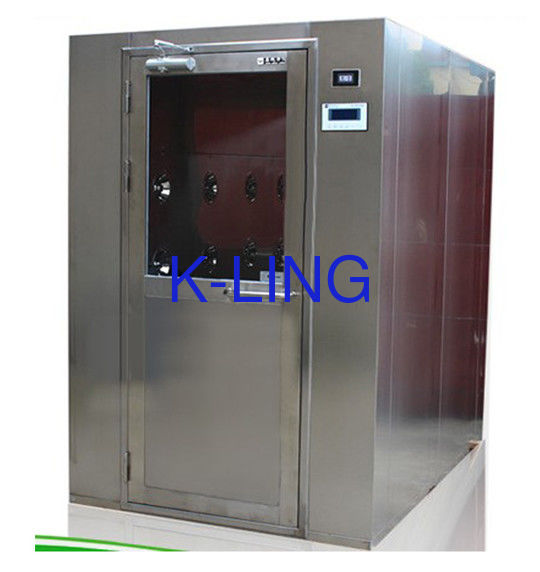

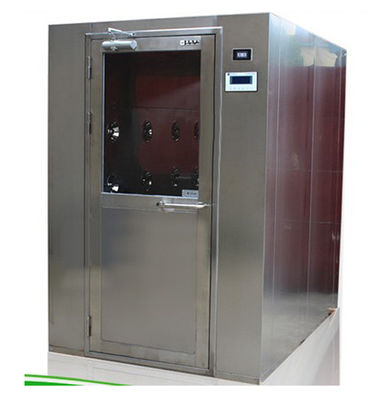

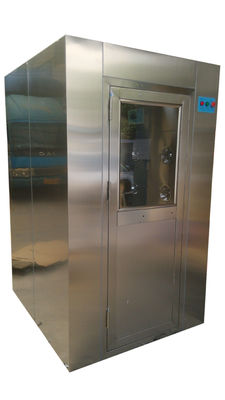

Stainless Steel 25m/S Air Shower System For Clean Rooms

Stainless Steel 25m/S Air Shower System For Clean Rooms
Stainless Steel 25m/S Air Shower System For Clean Rooms Stainless Steel 25m/S Air Shower System For Clean Rooms Stainless Steel 25m/S Air Shower System For Clean Rooms

Large Image :  Stainless Steel 25m/S Air Shower System For Clean Rooms

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP1300T-7.2 SERISE
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT
Supply Ability: 50UNITS/MONTH
Detailed Product Description
Product Name: 304 Stainless Steel Air Showers Other Name: Air Showers For Clean Rooms
Purification Rank: Class 1000 Material: Full Stainless Steel304(t=1.0)
Nozzle: Stainless Steel 304 Blowing Way: Three Side Blowing
Control System: Microprocessor Control System Configure: High Efficiency Filters
Guarantee Time: 2 Years
High Light:

CE Stainless Steel Air Showers

,

Microprocessor control air shower system

,

25m/s air shower system

304 Stainless Steel Air Showers For Clean Rooms With High Efficiency Filters

Pharmaceutical GMP Standard Clean Room Air Showers Tunnel With High Efficiency Filters





Quicky Detail



External Size: 1400x3000x2200mm

Internal size: 800x2930x2000mm

Alternative type : one row person with 3 direction blowing

Purification rank: Class1000

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 3-6 person

SUS nozzle: 44pcs

Blower way: three side  nozzle

Air speed :>25m/s

Power: 380V/50HZ or 380V/60HZ, 415V/50ZH , 440V/50HZ





Applications:  Air shower tunnel can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.

Stainless Steel 25m/S Air Shower System For Clean Rooms 0





Specification :

1  Automatic control (and manual), two electronic interlocking doors, automatically blow and
      shower with memory.
2  Doors, floor, nozzles are made of stainless steel, beautiful and durable, not deformed.
3  Two doors equipped with imported door closers, automatically close.

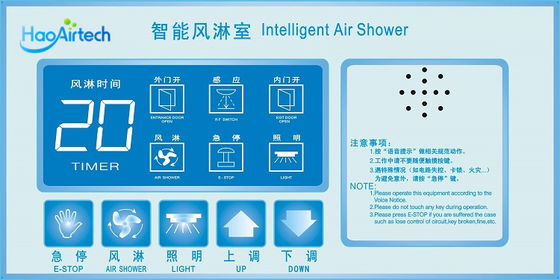

4  LED panel displays shower time (0 ~ 99s adjustable).
5  Low and high efficient dual filtration system, to extend the operating life of high efficiency filter,
    and reduce costs.
6  High-pressure fan with large air volume, low-resistance high efficiency filters, up to 25m / s or
     more wind speed, to ensure removing dust effects.
7:  Human being voice remind of use progress in chamber.
8:  Emergency switch help you out of trouble , comly with CE Test.





                                          KEL-AS1300T-7.3 Air shower Tunnel

Model

KEL-AS1300T-7.2

External size(mm) (WXDXH)

1150x7200x2180mm

Work zone

(mm)(WXDXH)

790x6860x1910mm

Persons per cycle

1-2 person

Air shower Duration

Factory set at 12 second (adjustable)

Material

1: Entirety Sus304.(T=1.0/1.2mm)

2:External is steel with power coated,

Internal is SUS304.(T=1.0/1.2mm)

3: External is steel with power coated.

Internal is SUS201. (T=1.0/1.2mm)

Fan consumption

0.75KWX7 set

Air flow of fan(m3/h)

1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

84pcs

Wind speed(m/s)

> 22-27m/s

Noise level(dB)

<62dB

LED Fluorescent Lamp

20wx7





HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Resistance

<220pa





Pre-filter

Size(mm)

785x385x21

Efficiency

75% @ 5um

Resistance

<30 Pa

Electrical

Power supply

380v/50Hz OR 380v/60Hz

Customer’s design is availbel









































































Principle:



Airshower tunnel is supplied by the fan, flowing into the sir plenum chamber via low efficiency filter, and

then filtered through high efficiency filter. The clean air comes out from the air shower nozzles (nozzle
angle can be adjusted), which can effectively remove people and belongings attached dust. The dust will flow back into the low efficiency air filters with air streams. The cycle achieves the
purpose of air shower tunnel.





Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
