| Name: | Fan Filter Unit HEPA | Application: | Clean Room |
|---|---|---|---|
| Efficiency: | 99.99%@0.3um | Power: | AC 220V/50HZ Or 110V/60HZ |
| Material: | Galvanized Or Stainless Steel 304 | Warranty: | 12 Month |
| Other Name: | Speed Control Switch FFU | Voltage: | AC OR DC Power |
| High Light: | Cleanroom Fan Filter Unit,180W Fan Filter Unit,Speed Control Switch ffu fan filter |
||

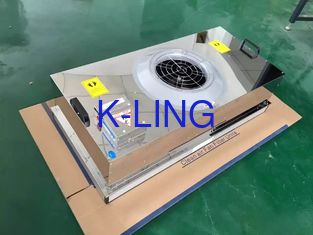

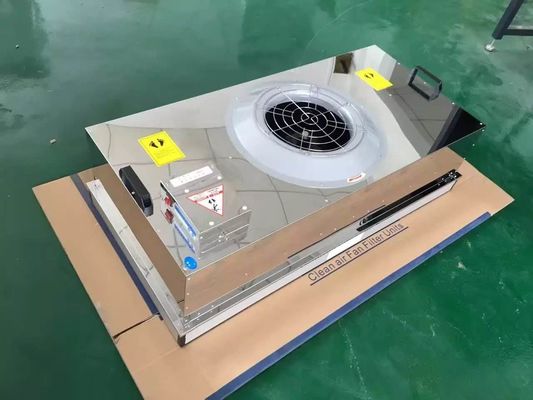

Three Speed Control Switch Fan Filter Unit HEPA For Clean Room Filter Systems
Introduction
Price Fan Filter Units (FFU) are the most energy efficient line of fan filter units (fan filter modules) on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories, the FFU delivers high volumes of HEPA (or ULPA) filtered air at low sound levels while reducing energy consumption by 15 to 50% versus comparable products.
Features
Parameter
| Model | KEL-FFU1220 | KEL-FFU1170 | KEL-FFU610 | KEL-FFU570 |
| Rate air flow(m3/h) | 2000 | 1800 | 1000 | 900 |
| Noise (dB) | 45~60 | |||
| Efficiency | ≥99.99%~99.9995%(@≥0.3um) | |||
| Power | AC220v 50HZ | |||
| Overall size W*L*H (mm) |
1220*610*390 | 1170*570*340 | 610*610*390 | 570*570*340 |
| HEPA filter size W*L*H (mm) |
1220*610*69 | 1170*570*69 | 610*610*69 | 570*570*69 |
| Coarse filter size W*L*H (mm) |
495*495*21 | 495*495*21 | 395*395*21 | 395*395*21 |
| Input power (W) |
180W | 180W | 145W | 75W |
Features:
●Low running cost and easy to use
●Compact structure and environmental friendly
●Suitable for use in clean room of class1 to class 1000.
●High performance and low noise ,Low vibration fans
● Uniform wind speed and adjustable fan

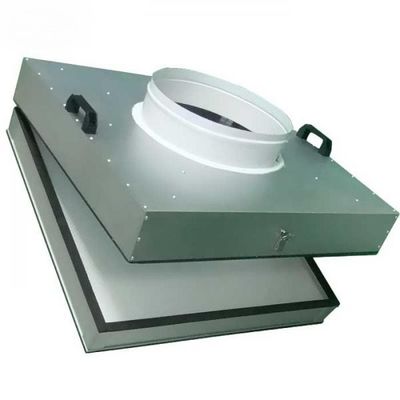

●Fan box and filter can be divided and easy to replacement
●frame material are ALZINC frame , stainless steel(SUS304) frame , cold plate spraying frame
Application:
fan filter units can use modular connecting , fan filter units are widely used in the clean room, Clean Booth Station ,clean work station, clean production lines, packaged applications, laboratories, medical facilities ,local 100 class occasion etc.
Design Drawing
