Product Details:
|
| Material: | SUS 304 | Model: | Intelligent |
|---|---|---|---|
| Name: | Air Shower Room | Interlock: | Electronic Interlock |
| Warranty: | 1 Year | Original: | China |
| Highlight: | SUS 304 Air Shower Unit,Electronic Interlock Air Shower Unit,Intelligent Cleanroom Air Shower |
||

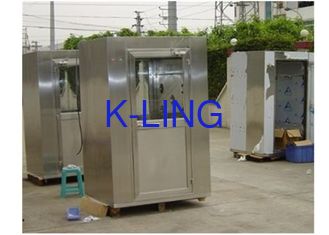

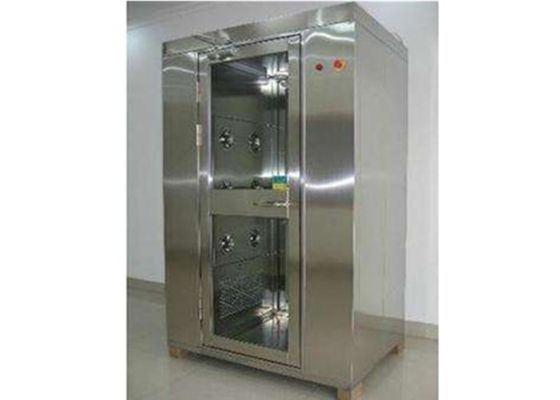

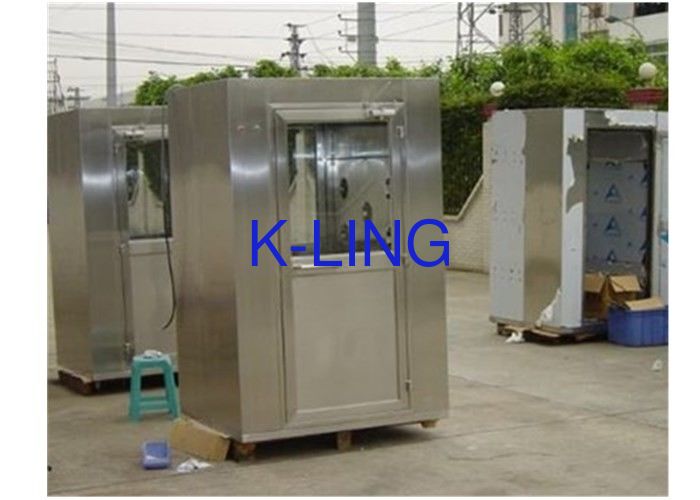

Intelligent Air Shower Room Air Shower Unit SUS 304 With Electronic Interlock
Intelligent air shower room uses SUS304 steel plate, equipped with centrifugal fans, mist nozzles, bag-in-bag-out filter system, and assembled HEPA filter mist/air blowing & filtration system. It is characterized by well formed&compact structure, easy maintenance, simple operation, etc. This machine adopts PLC controlled infrared probe, automatic mist spray/air blow and electric interlock.
Parameter
As Following Is Our Standard Type Air Shower Room. Customer's Design Is Also Available
| Model | HA-AS1300P1 |
| External size (W*D*H) | 1300*1000*2180(mm) |
| Work zone (W*D*H) | 800*930*1910(mm) |
| Persons per cycle | 1-2 person |
| Air shower Duration | Factory set at 15 second (adjustable) |
| Material | All cabinet is SUS304 (t=1.0mm) |
| Fan consumption | 0.75KW*2set |
| Air flow of fan(m3/h) | 1200m3/h |
| Fan run (r/min) | 2800r/min |
| Nozzle in stain less steel | 16 pcs (Three side blowing. 6 pcs on the left, 6 pcs on the right, 4 side on the top) |
| Wind speed(m/s) | 25m/s |
| Noise level(dB) | <62dB |
| Anti-static device | 1 set |
| LED Fluorescent Lamp | 20wx1 set |
Design Drawing
Our HA-AS 1300P1 design drawing is as following. If you need a customized air shower, please contact our sales representative. We will provide design drawing and quotaion as your requirment.
