| Material: | SUS 304/ SUS 201/ SUS 316L / Powder Coating Steel | Size: | Customizable |
|---|---|---|---|
| Door Open Way: | Customizable | Wind Speed: | More Than 25m/s |
| Capacity: | Customizable | Original: | GuangZhou China |
| High Light: | SUS316L Air Shower Tunnel,Steel Air Shower Tunnel,25m/s Cleanroom air shower |
||

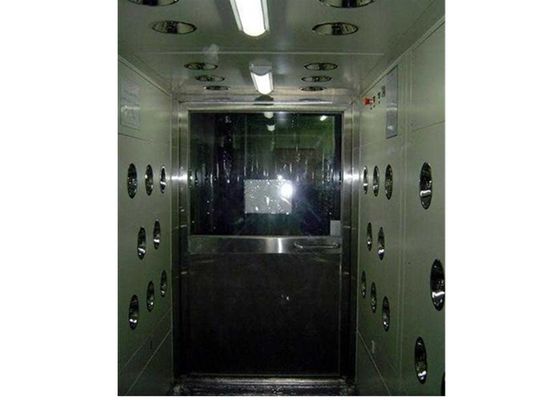

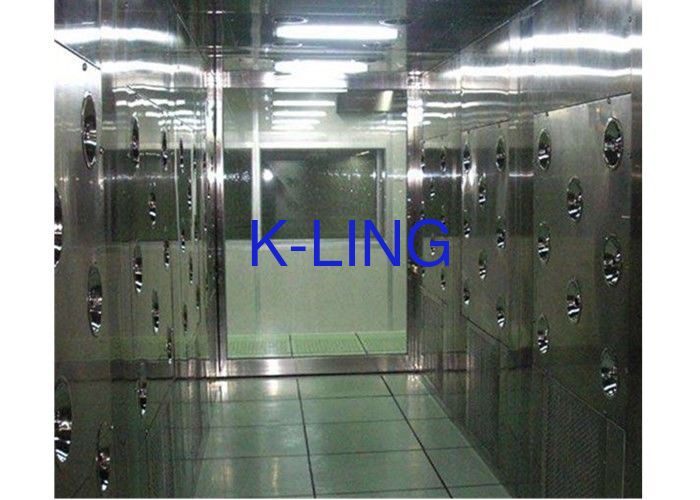

Air Shower Tunnel SUS 304/ SUS 201/ SUS 316L / Powder coating steel Material
Air Shower tunnel is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Outside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Inside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Doors: SUS#201,SUS#304 or aluminum alloy
Door type: Swing door, Sliding door Or Shutter door
Base: SUS#201 or 304
Nozzles:SUS#304
Parameter
As Following Is Our Standard Type Air Shower Room. Customer's Design Is Also Available
| Model | HA-AS1300P1 |
| External size (W*D*H) | 1300*1000*2180(mm) |
| Work zone (W*D*H) | 800*930*1910(mm) |
| Persons per cycle | 1-2 person |
| Air shower Duration | Factory set at 15 second (adjustable) |
| Material | All cabinet is SUS304 (t=1.0mm) |
| Fan consumption | 0.75KW*2set |
| Air flow of fan(m3/h) | 1200m3/h |
| Fan run (r/min) | 2800r/min |
| Nozzle in stain less steel | 16 pcs (Three side blowing. 6 pcs on the left, 6 pcs on the right, 4 side on the top) |
| Wind speed(m/s) | 25m/s |
| Noise level(dB) | <62dB |
| Anti-static device | 1 set |
| LED Fluorescent Lamp | 20wx1 set |
