| Size: | 1530*8000*2050mm | Material: | Stailess Steel SUS304/201/316 /Powder Coated Steel |
|---|---|---|---|
| Air Velocity: | > 25 M/s | Filter Efficiency: | ≥99.995%@0.3μm |
| Door: | Half Stainless Steel Half Glass | Original: | GuangZhou China |
| High Light: | Clean Room Air Shower Tunnel,LCD Air Shower Tunnel |
||

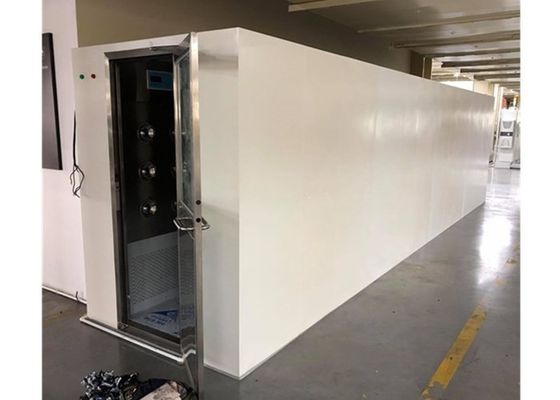

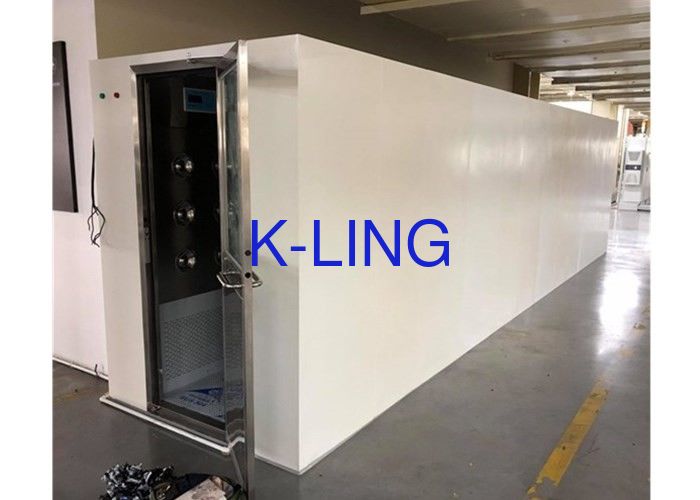

Clean Room Entrance Air Shower Tunnel Provided Free Design Drawing

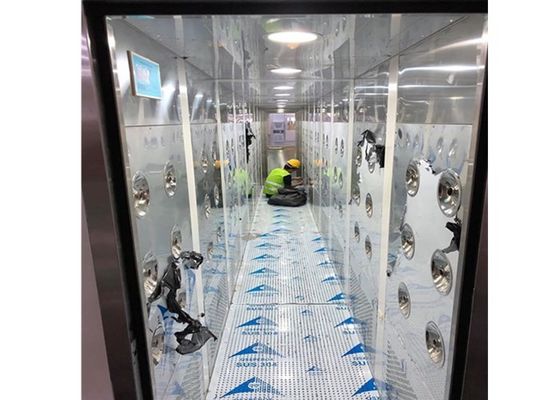

Air shower tunnel is an entrance to the clean room. It can remove most of the particles attached to people or objects. This type air shower tunnel is customized type. It suitable for factories with many worker. The particles can be cleaned up while worker walking through. So it can save a lot of time. If necessary, we will connect the air conditioner air supply pipe with the air shower tunnel. In this way, the air shower tunnel inner environment will be more friendly with people
| Model | Costomized Air Shower Tunnel | |||
| Material | SUS 304/316/ Powder coated steel | |||
| Users | More than 20 | |||
| Air Shower Time | 0-99 seconds(adjustable) | |||
| Nozzle Diameter | 30 mm | |||
| Air Velocity | > 25 m/s | |||
| Filter Efficacy | ≥99.995%@0.3μm | |||
| Control Panel | 7" LCD Touchscreen PLC Control Panel | |||
|
External size LxWxH (mm) |
1530*8000*2050mm | |||
|
Interior Size LxWxH (mm) |
790*8000*1900mm | |||
| Power Source | 380V/50Hz (Also Available in 220V and 110V) | |||
| Lighting | 8 Recessed LED | |||
| Floor | SUS 304 plate with holes | |||
| Door | Half stainless steel half glass | |||
| Fan Power (# x Kw) |
16 x 0.55 | |||
