Product Details:
|
| Size: | 592*592*292 | Pack: | 4 |
|---|---|---|---|
| Rate Air Flow: | 16.44 Sq.m | Dust Holding: | 1000g |
| Efficiency: | F6-F9 | Original: | GuangZhou China |
| Highlight: | F7 V Bank Filter,16.44 sq.m V Bank Filter,F9 v bank air filters |
||

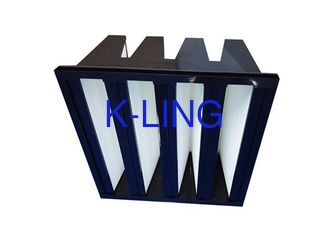

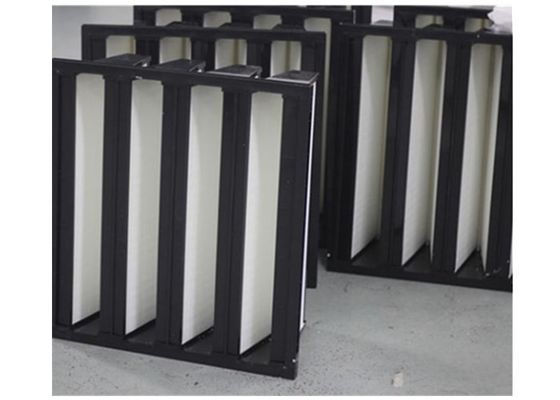

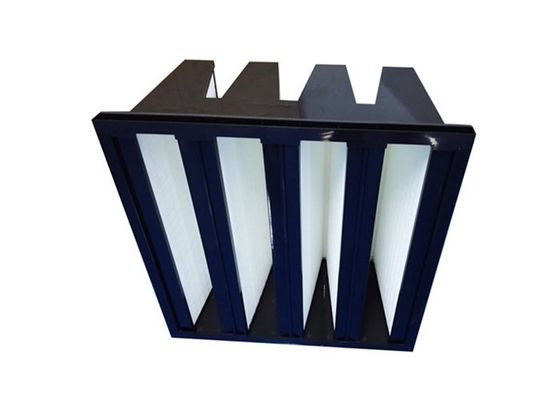

Plastic Frame F7 V Bank Filter For Air Conditioning System Low Resistance
V Bank Filter Introduction
V-bank air filter is mainly used to filter airborne particles than 0.3um, made of ultra-fine glass fiber media and hot melt separate folds spacing to ensure best airflow through with minimal resistance, mini-pleated type with high dust holding capacity design,it is the final filtration of air conditioning system, special designed to achieve high winds at low resistance.
V-bank Air Filter is a kind of deep loading, high efficiency air filter fitting through both permanent air flow systems. It is constructed of multiple media packs in V-bank installed in a plastic coated galvanized sheet metal box . Its media area is largely extended compared with ordinary air filter.
V Bank Compact Filter Specification:
Customer Size Is Available.
|
Dimension (W*H*D) (Mm) |
Pack |
Air Flow (M3/H) |
Primary Resistance (By0.5m/S) |
Final Resistance |
Efficiency (0.3um) |
| 287X287X292 | 2 | 900 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||
| 〈100 | 300-400 | F8 | |||
| 〈120 | 400-450 | F9 | |||
| 592X592X292 | 3 | 2850 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||
| 〈100 | 300-400 | F8 | |||
| 〈120 | 400-450 | F9 | |||
| 592X592X292 | 4 | 3800 | 〈60 | 250-300 | F6 |
| 〈80 | 300-400 | F7 | |||
| 〈100 | 300-400 | F8 | |||
| 〈120 | 400-450 | F9 |
Display
