Product Details:
|
| Material: | Powder Coated Steel/ SUS 304/201/316 | Nozzles: | SUS 304 Material |
|---|---|---|---|
| Door And Floor: | SUS 304 Material | Wind Speed: | 25-30 M/s, Wind Speed Adjustable |
| Original: | GuangZhou China | Warranty: | 1 Year |
| Highlight: | 30 m/s Air Shower Clean Room,SUS316 Air Shower Clean Room,SUS 304 cargo shower room |
||
Two Sides Blowing Clean Room Air Shower Room SUS 304/201/316 Material Cabinet
Introduction Of Air Shower

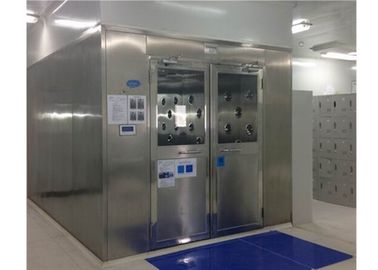

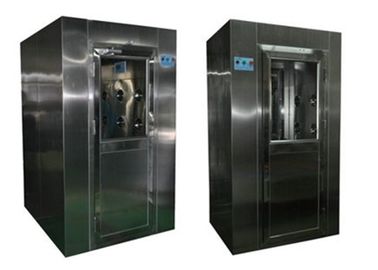

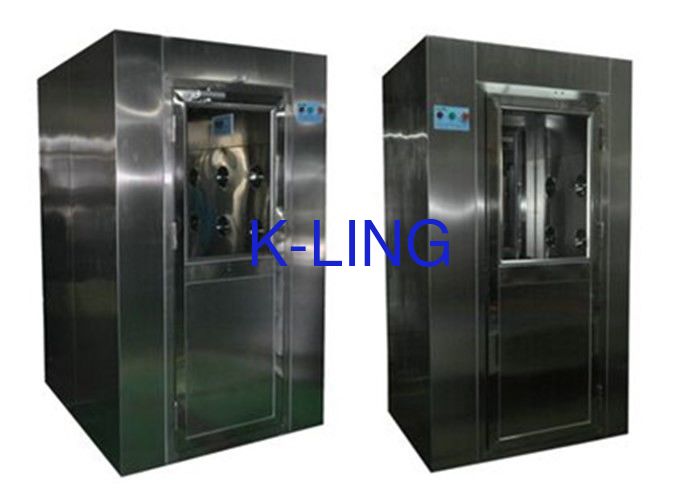

Air shower room/cargo shower room series products are a kind of versatile local purification equipment. They are generally installed between clean rooms and non-clean rooms, and are the passages for people or goods to enter the clean room. The clean air blown out of the air shower room can remove the dust carried by people and goods, and can effectively block or reduce the dust source from entering the clean area. The two front and rear doors of the air shower room/cargo shower room are electronically interlocked, which can also act as an air lock to prevent unpurified air from entering the clean area. The equipment is widely used in the fields of food, medicine, bioengineering and microelectronics.
Configuration
Air shower room material: optional cold rolled steel plate powder coating or stainless steel (201# or 304#)
Door and bottom plate: The door and bottom plate are all stainless steel,
Nozzle and wind speed: Stainless steel angle adjustable spray, the wind speed of the air outlet is greater than 25M/s, blowing on the person is greater than 18M/s
Fan: Large-volume fan dedicated for wind shower, low noise
Illumination: Use embedded small square lamp
Parameter
| Model | KEL-A-900 | KEL-A-1400 | KEL-A-1900 | KEL-A-2900 |
| Material | Available in 100% SUS304 Stainless Steel and/or High-Quality Steel Plate | |||
| Users | 1 | 2 | 2-3 | 3-4 |
| Air Shower Time | 0-99 seconds | |||
| Jet Nozzles | 12 | 18 | 24 | 36 |
| Nozzle Diameter | 30 mm | |||
| Air Velocity | > 25 m/s | |||
| Filter Efficacy | ≥99.995% of Particles ≥0.3μm | |||
| Control Panel | 7" LCD Touchscreen PLC Control Panel | |||
|
Filter Size LxWxH (mm) |
600 × 600 × 120 | 820 × 600 × 120 | 600 × 600 × 120 | 600 × 600 × 120 |
| No. of Filters | 2 | 2 | 4 | 6 |
| Exterior Size LxWxH (mm) |
1700 x 1000 x 2200 | 1700 x 1500 x 2200 | 1700 x 2000 x 2200 | 1700 x 3000 x 2200 |
|
Interior Size
|
800 x 900 x 1960 | 800 x 1400 x 1960 | 800 x 1900 x 1960 | 800 x 2900 x 1960 |
| Power Source | 380V/50Hz (Also Available in 220V and 110V) | |||
| Lighting | 1 Recessed LED | 2 Recessed LED | 2 Recessed LED | 3 Recessed LED |
| Fan Power (# x Kw) |
2 x 0.55 | 2 x 0.75 | 4 x 0.55 | 6 x 0.55 |
