Product Details:
|
| Frame Material: | SUS 304 | Wall Material: | Transparent Plexiglass |
|---|---|---|---|
| Name: | Softwall Clean Room/modular Clean Room | Pre-filter: | 75%@5um |
| HEPA Filter: | 99.99%@0.3um | Power Supply: | 220V/60HZ |
| Highlight: | Class 10000 Softwall Clean Room,Transparent Softwall Clean Room |
||

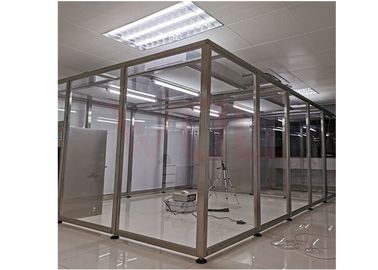

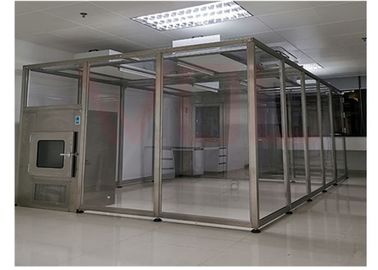

SUS 304 Frame Transparent Plexiglass wall Softwall Clean Room/ Modular Clean Room
Introduction
Clean room is an air purification equipment that can provide a local highly clean environment. It is mainly composed of a box body, fans, air filter, lamps, etc.For this type cleam room, the frame is SUS 304. The product can be hung and supported on the ground, with compact structure and easy to use. It can be used singly or in multiple connections to form a strip-shaped clean area.
Function
The softwall clean room can be set up quickly have the characteristics of fast installation, short construction period, low price and convenient movement. It is also the best choice to control the main production process in a smaller environment.
Type Of Clean Room
Clean work sheds are divided into various types, including ordinary curtain type, glass structure type, steel plate structure type, self-contained air-conditioning type, module combination type, anti-static type and self-contained air shower type, etc. Different occasions and different production needs, we can flexibly choose different types of clean rooms.
| Size | 6000*9144*2350 |
| Purification class | Class 10000 |
| Frame | Aluminum profile, size: 50*50mm |
| ffu no | 8PCS |
| ffu size | 1175*575*300mm |
| wall | Plexiglass ,T:5mm |
| Voltage | 120V/60HZ |
| Led | 36pcs |
| Control box | 1pcs |
| ffu no | 8 sets |
| air shower | Enternal size:1290*1000*2050,internal size:790*920*2050 |
| sus304 material,380v/50hz | |
| 12nozzles,English voice control panel,E-stop swift |
Display
