Transfer Window and Air Shower Pass Box
Pass Box is a kind of assistant equipment for clean room. Mainly be used in passing the small articles between clean room and unclean room, different class and different pressure clean room. One side, it is affected for air brake and protect the high pressure discharged in the high class clean room. On the other hand, it can achieve the showering result during the passing for ensuring goods clean to enter the clean room and reduce the goods to bring the pollution extent. The showering time can according to the practical need within one minute adjustable. It can reach showering and save energy for the maximal limit.
Product Features:
1.Material:SS 304
2.On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.
3.The outlet of the wind speed up to more than 20 s.
4.Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.
5.Using EVA sealing material, sealing performance is high.
6.Imported electronic components, reliable in performance.

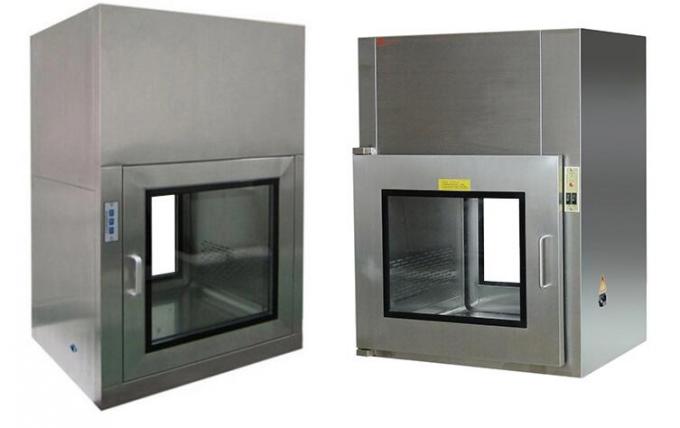

Pass Box
-
used for goods transfer between clean areas or between clean and non-clean areas
-
reduce cleanroom contamination risk
-
static and dynamic type
-
with self-clean and sterilization optional
Products Parameter:
| MODEL |
HA-ASPB500 |
External size (mm)
(W*D*H) |
850x500x1350mm |
Work zone (mm)
(W*D*H) |
500x500x500mm |
| Nozzle |
4 PCS |
| Air speed |
18-25m/s |
| Per-filter |
425x275x17mm |
| G3 |
| HEPA filter |
360x360x69mm |
| 99.99%@0.3um H13 |
| Optional accessories |
1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller |
| Power supply |
0.75KW 380V/50HZ |
| packing size (mm) |
1050x780x1600mm |
1100x880x1700mm |
1240x1030x1850mm |
| Packing material |
Standard Export Poly wood Packing(Fumigant free material) |

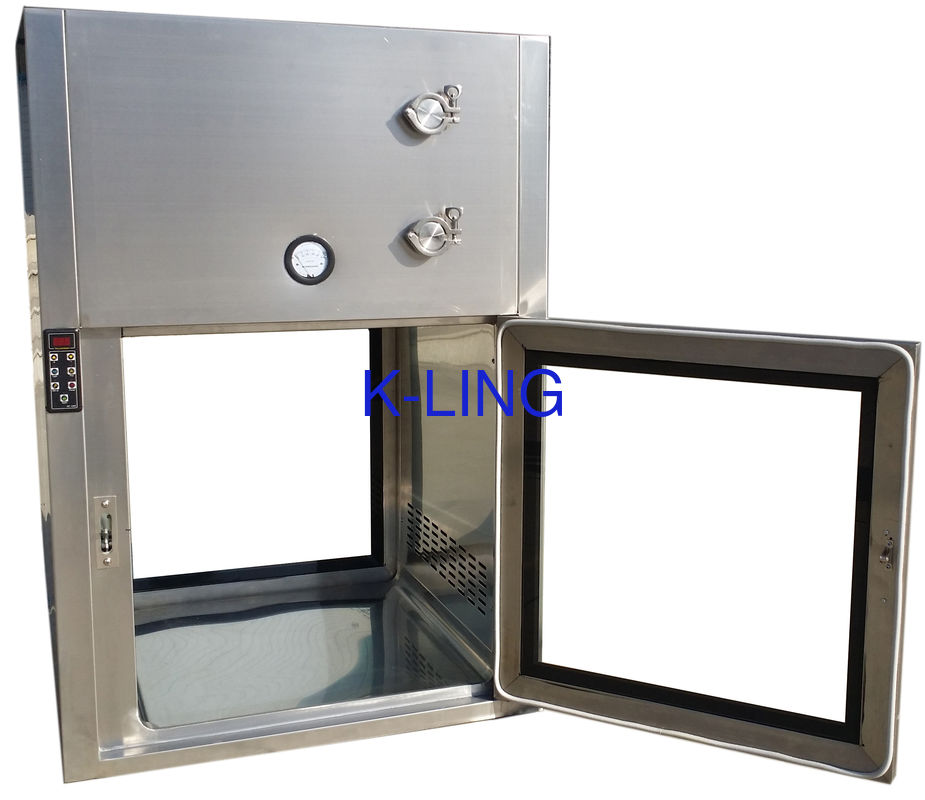

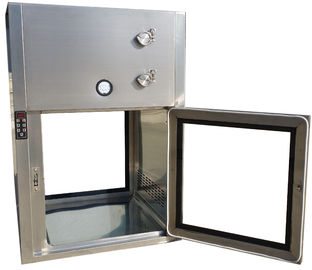

Air Shower Pass Box:

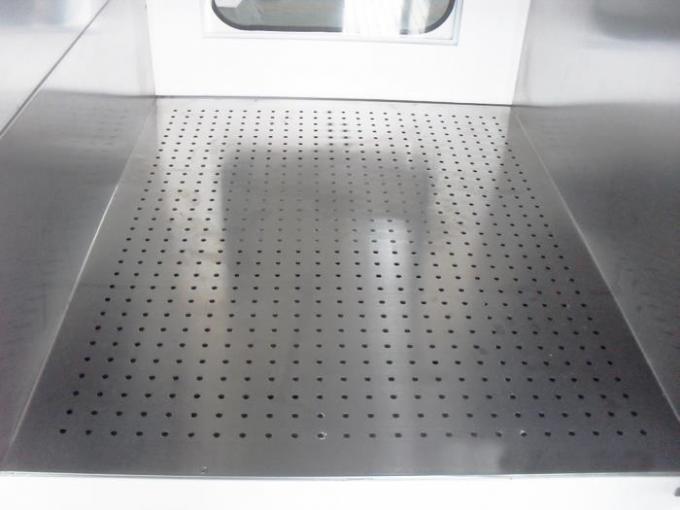

Air Shower Pass Box Bottom:

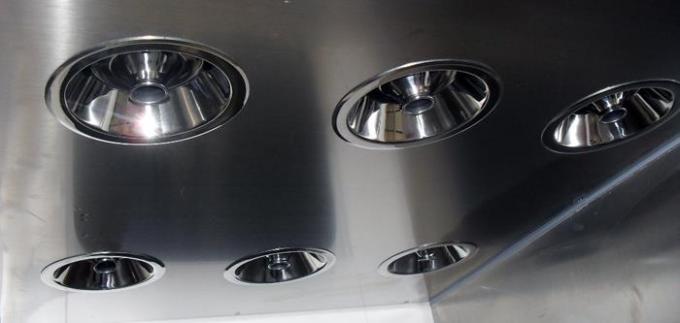

Air Shower Pass Box Top Nozzle:
Company Principle:
We are committed to developing in GMP clean workshop, QS clean workshop, industrial clean workshop, aseptic room, biosafety laboratory and other standard clean workshops and supporting clean equipment. We have established and improved the products quality management system according to the international standard, and the products have awarded more than ten national patents.
We have settled up a high-quality product research and development team, adhering to the sincere and trustworthy, serious and rigorous work style, constantly improve ourselves, make the business philosophy remain in "advanced technology, quality products, reasonable prices, the best service to satisfy the purification of the market.
