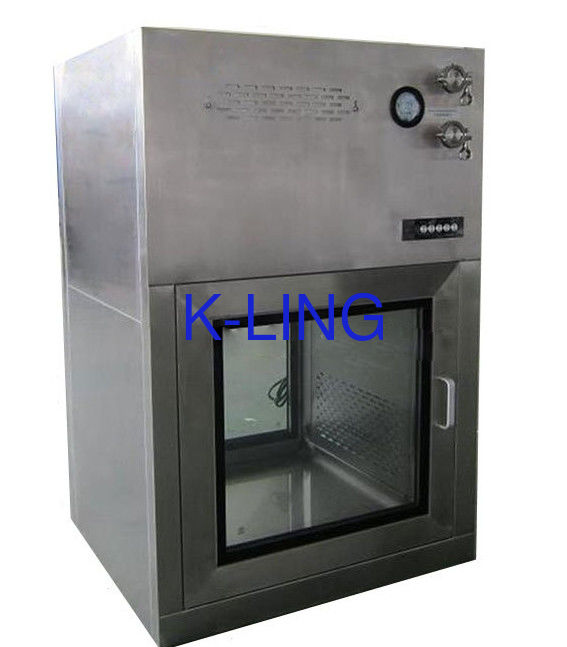

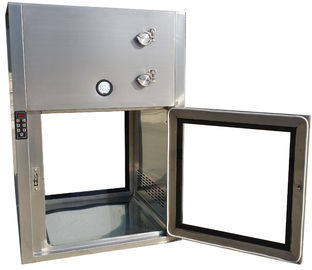

Cleanroom Pass Through Box

Cleanroom Pass Through Box
Cleanroom Pass Through Box Cleanroom Pass Through Box Cleanroom Pass Through Box Cleanroom Pass Through Box

Large Image :  Cleanroom Pass Through Box

Product Details:
Place of Origin: China
Brand Name: Haoairtech
Certification: CE
Model Number: KEL-ASPB500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Detailed Product Description
Brand: Haoairtech Material: 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External Is Steel With Power Coated, Internal Is SUS304(T=1.2/1.5mm) 4: External Is Steel With Power Coated. Internal Is SUS201(T=1.2/1.5mm)
MODEL: KEL-ASPB500 External Size (mm) (W*D*H): 850x500x1350mm
Work Zone (mm) (W*D*H): 500x500x500mm Nozzles: 4-6 Pieces
Air Speed: 18-25m/s Air Filter: Per-filter/HEPA Filter
High Light:

clean room pass through box

,

Pass Thru Box

stainless steel 304 material ISO/CE certified class 100 dynamic pass box cleanroom pass through



Introduce:



The Pass Box is a device that is arranged between the clean room entrance and exit or different cleanliness level rooms to block the indoor and outdoor airflow when the goods are delivered, so as to prevent polluted air from entering the clean area and causing cross-contamination. When the air showering pass box conveys the material, the top part blows out the high-speed, clean airflow, and blows off the dust particles on the surface of the cargo. At this time, the doors on both sides can be opened or closed, and the clean airflow acts as an air brake to ensure the outdoor of the clean room. Air does not affect the cleanliness of the room. A special sealing strip is installed on the inner side of the door on both sides of the pass box to ensure the airtightness of the pass box.



Purifying transfer window may transfer materials, equipment and tools under the protection of Class A environment. Materials, equipments or tools which have been purified may be delivered to the aseptic area, mainly from Class C area to Class B area. As to user's demand, the purifying transfer window can be equipped with UV germicidal lamp or ozone generator sterilization system.





Principle Of Using

One-side opening door
Since all the pass boxes are equipped with interlocking devices, the door of the pass box can only be opened on one side and closed on the other. Open the door of the pass box(if the other side of the door is not closed, you can't open it), put the material to be transferred into the pass box, close the door of the pass box, and the other operator opens the door and takes out the material in the pass box. , close the door of the pass box.



Pass box is a corollary equipment of clean booth and clean factory, which mainly used to pass small articles between non-clean and clean zone or low cleanliness degree zone and high cleanliness degree zone. It can remove the dust on the surface of articles. Meanwhile, this pass box can also prevent unpurified air get into clean zone.



Products Parameter:

MODEL KEL-ASPB500
External size (mm)
(W*D*H)
850x500x1350mm
Work zone (mm)
(W*D*H)
500x500x500mm
Nozzle 4 PCS
Air speed 18-25m/s
Per-filter 425x275x17mm
G3
HEPA filter 360x360x69mm
99.99%@0.3um H13
Optional accessories 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller
Power supply 0.75KW 380V/50HZ
packing size (mm) 1050x780x1600mm 1100x880x1700mm 1240x1030x1850mm
Packing material Standard Export Poly wood Packing(Fumigant free material)







Air Shower Pass Box:




Air Shower Pass Box Bottom:




Air Shower Pass Box Top Nozzle:




About Us



We are a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
