| Brand: | Haoairtech | Material: | 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External Is Steel With Power Coated, Internal Is SUS304(T=1.2/1.5mm) 4: External Is Steel With Power Coated. Internal Is SUS201(T=1.2/1.5mm) |
|---|---|---|---|
| MODEL: | HA-DPB750 | External Size (mm) (W*D*H): | 910x750x840mm |
| Work Zone (mm) (W*D*H): | 750x750x750mm | Purification Rank: | Class 100 |
| UV Light: | 1 Piece | ||
| High Light: | clean room pass through box,Pass Thru Box |
||
CE Standard Static Pass Box Hospital clean room Pass Through/Box Chamber stainless steel material
Introduction:
The pass box is a device that prevents contamination when the indoor and outdoor output items are clean.
This product is divided into three categories: electronic interlock transfer window, mechanical interlock transfer window and self-net transfer window:
Electronic interlock transfer window, opening and interlocking of window door with electronic interlocking device, ultraviolet lamp in the window;
Mechanical interlock transmission window, opening and interlocking of window door with mechanical interlocking device, ultraviolet lamp in the window,Self-net transmission, window door The use of electronic interlocking means to open and chain, the window is equipped with ultraviolet light, fan and high-efficiency filter and other purification devices.
Applications:
Micro-electronics,laboratory,national defense, precise instrument and gauges, bio-pharmaceuticals, opto - electronics field.
Widely used in the place where the clean air is needed, such as pharmaceutical factory, hospital,food, LCD and electronics factory etc.
It is the clean area equipment to purify people and avoid air pollutant.
When transfering material, the inside and outside air flow will be separated.
-CE certificated and conform to GMP standard;
Products Parameter:
| MODEL | HA-DPB750 | ||
| External size (mm) (W*D*H) |
910x750x840mm | ||
| Work zone (mm) (W*D*H) |
750x750x750mm | ||
| Purification rank | Class 100 | ||
| Material (Option) |
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm) |
||
| Control system | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable |
||
| UV light | 1 PCS | ||
| Power supply | 220v/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||

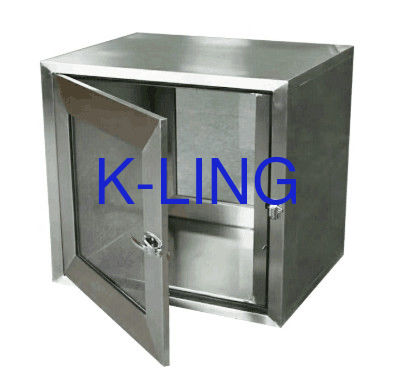

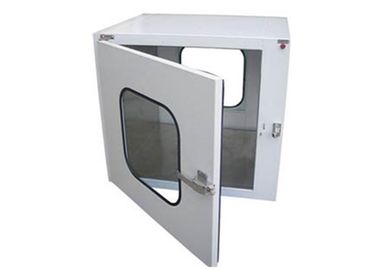

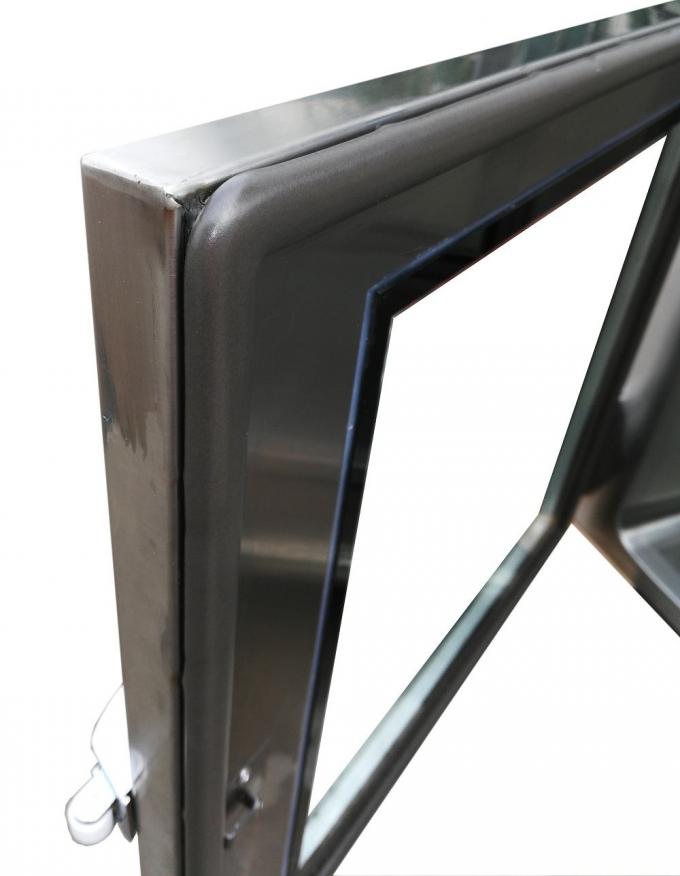

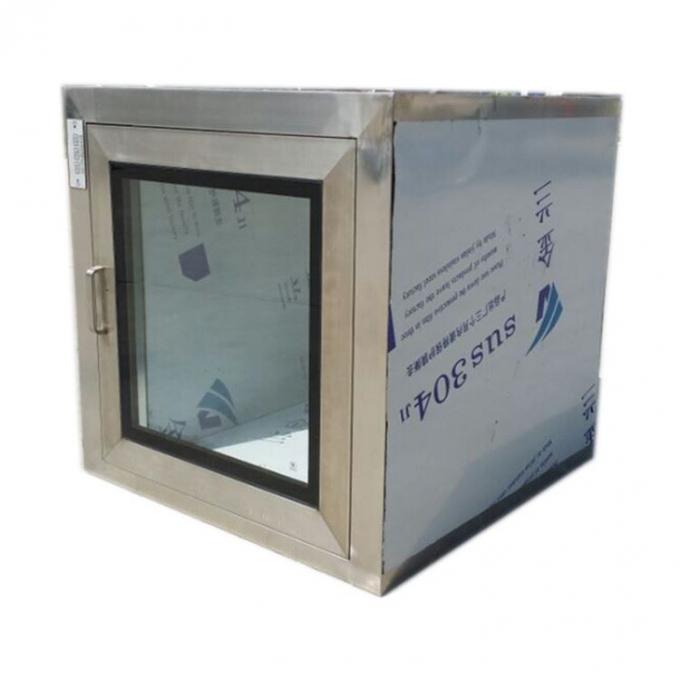

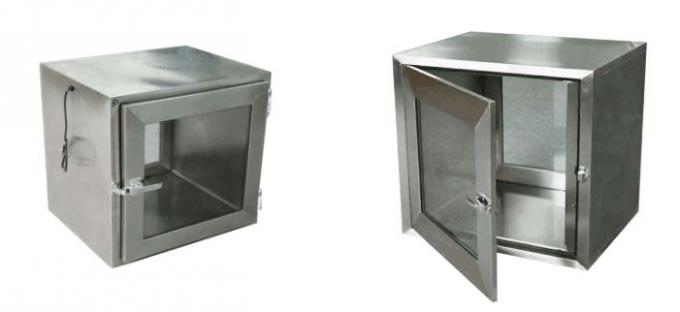

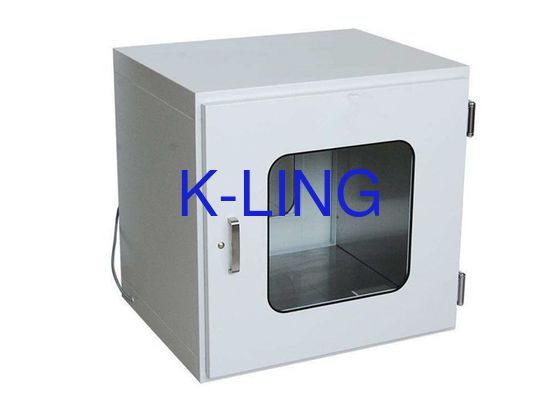

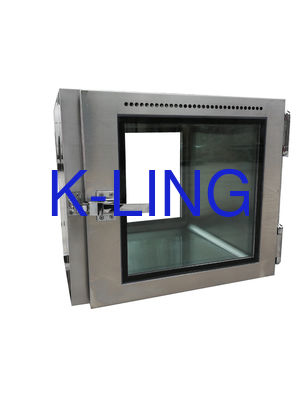

Pass Box Outlook:
