Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter

Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter
Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter

Large Image :  Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter

Product Details:
Place of Origin: CHINA
Brand Name: K - LING
Certification: CE , RoHS
Model Number: KEL - CP
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Carton Packing
Delivery Time: 7 - 10 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs / month
Detailed Product Description
Name: Cardboard Frame Primary Air Filter Efficiency: G4
Dimension: 592X592X46mm Media Area: 0.94 ㎡
Dust Holding: 188g Initial Resisitance: <45pa
Finally Resistance: 150-250
High Light:

pleated media filter

,

pleated air filters hvac

Washable pleated synthetic fiber medium panel type primary air filter with aluminum frame



Introduction :



Pre-filtration of air conditioning and ventilation systems to avoid ash pollution inside the system
Pre-filtration of large air compressor
Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high
efficiency filter in the rear section
Ventilation system for general industrial plants to meet general cleaning requirements for air
Rough dust filtration system of air conditioning in general construction building



Instruction for structure:

The board type aluminum alloy frame is equipped with an ABS plastic corner or an aluminum alloy corner, and the structure is
stable.
The use of a meshed polyester fiber filter provides lower resistance and greater dust holding capacity.



Features :



Frame - aluminum alloy
Optional thickness of frame - 46mm
Filter material - high quality polyester synthetic fiber
Reinforcement - hot-dip galvanized square wire mesh
Connection angle - sturdy, high temperature resistant ABS plastic angle / aluminum alloy corner

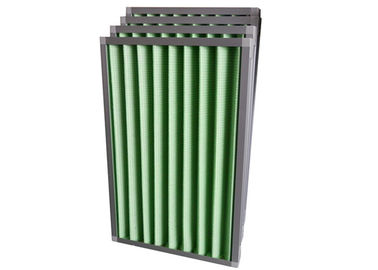

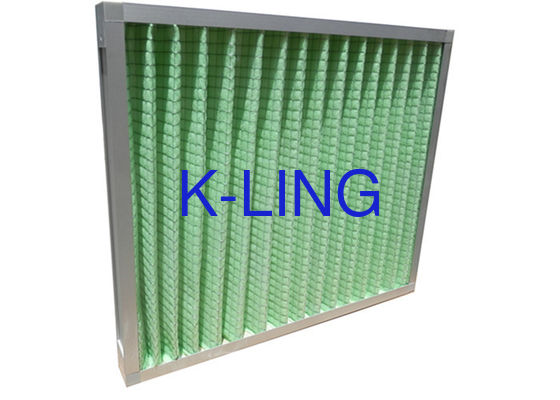

Photographs :

Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter 0Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter 1Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter 2



Parameters :





Cardboard Frame Primary Air Filter

Dimension

(mm)

595x595x46 595x595x46 595x595x46 495x592x46 495x592x46

Air Flow

(m3/h)

2800 2800 2800 2330 2330
Media Area(㎡) 1.04 1.04 1.04 0.86 0.86
Dust Holding(g) 135 166 207 112 138

Initial Resistance

(pa)

<30 <40 <45 <30 <40

Finally Resistance

(pa)

100-200 100-200 150-250 100-200 100-200







ABOUT US :


GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.

Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.

Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.

Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter 3Primary Efficiency Washable Panel Pleated Air Filters For AHU Pre Filter 4
