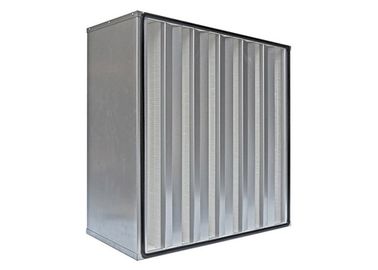

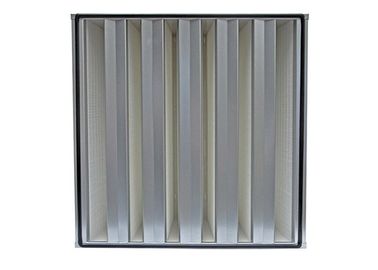

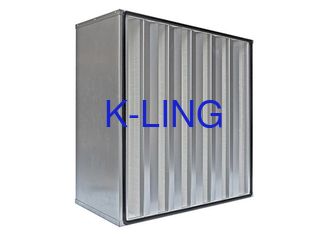

Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable

Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable
Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable

Large Image :  Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-VHF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Efficiency:: 99.97%@0.3um Product Name:: V Bank Hepa Filter
Gasket:: Endless Gasket HEPA Media:: Glass Fiber
Max Humidity:: 100% Frame:: Aluminum / Galvanized Steel
High Light:

hepa high efficiency particulate air filter

,

clean room air filter

Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable





Material And Operation Conditions



Efficiency: H13 / H14

Media: Micro glass fiber

Frame: Aluminum / GI / SUS

Sealant: Pu two-component polyurethane glue

Gasket: Pu endless gasket / EVA / EPDM

Separator: Hot melt bead

Optional thickness: 220 ~ 305mm

Max Temperature: 70℃

Max Humidity: 100%





Product feature



100% factory inspection

Special sealant to ensure good sealing

Large air flow

Big media area, large air flow and high efficiency

Special V-Shape construction, can minimize the structure resistance

Can be with flange, easy installation and maintenance





Parameter



KEL-VHF1 289*289*292 500 5.50 1.66 H13-H14 4
KEL-VHF2 289*594*292 900 8.23 1.46 H13-H14 6
KEL-VHF3 594*594*292 1800 16.50 1.42 H13-H14 6
KEL-VHF4 289*594*292 1200 10.97 1.94 H13-H14 8
KEL-VHF5 289*594*292 2450 21.90 1.93 H13-H14 8
KEL-VHF6 594*594*292 1500 13.72 2.43 H13-H14 10
KEL-VHF7 594*594*292 3000 27.48 2.36 H13-H14 10
KEL-VHF8 610*610*292 3050 28.20 2.28 H13-H14 10
KEL-VHF9 610*610*292 3650 33.84 2.72 H13-H14 12





Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable 0

Metal Frame Mini Pleat V Bank HEPA Air Filter Size Customizable 1
