| Brand Name: | KEL | Material:: | SUS 304/ SUS 316 |
|---|---|---|---|
| Name: | Dispensing Booth | Other Name: | Sampling Booth/negative Pressure Weighing Booth |
| Warranty: | 1 Year | Place Of Origin:: | GuangZhou China |
| High Light: | pharmaceutical sampling booth,pharmaceutical weighing booth |
||

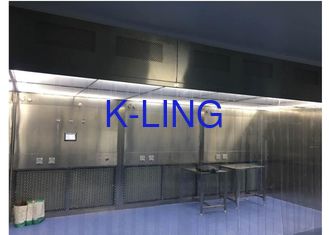

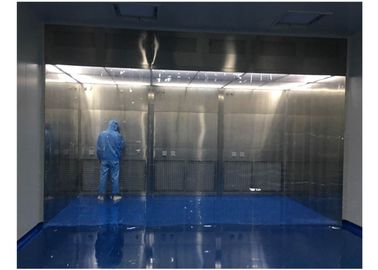

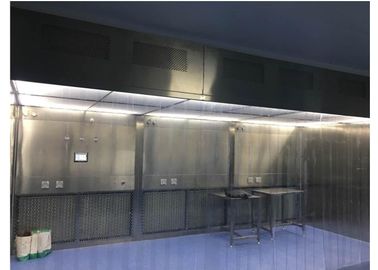

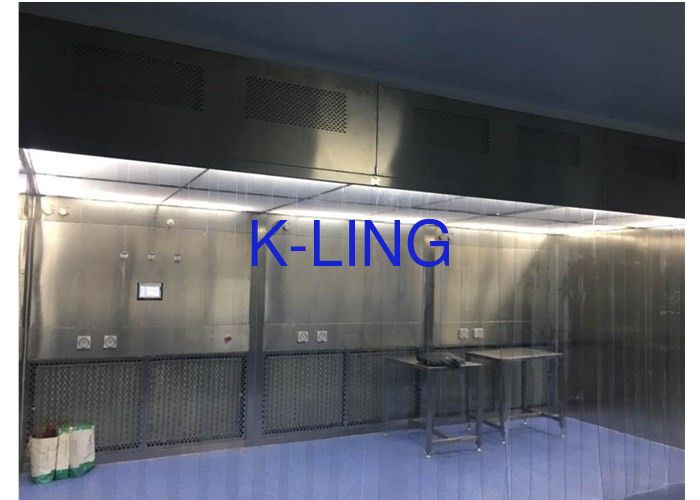

Dispensing booth/Sampling booth/ Negative pressure weighing booth
Dispensing Booth Introduction
Sampling booth / Dispensing booth is purifying apparatus. Unidirectional vertical laminar flow Class ISO5 (Class100).
The Raw materials and compounds are refilling, weighing, filling, and sampling. It is provided with high efficiency HEPA filter, which averts the airborne dusts by down flow of air technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth removes powder contamination in order to protect the operator (user) and the nearby environment and is used for weighing, mixing and dispensing of powder. The sampling / dispensing booth is the re-circulation of air principle.
Dispensing Booth Feature
Used for sampling,weighing and analysis
Control powder and particles in operation area
With PLC controller,airflow sensor and differential pressure sensor
Cleanliness monitoring optional
Dispensing Booth Parameter
Customer's design is available.
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB1900 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000×2200×2650mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900×1900×2150mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.2-0.7m/s | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Intensity of illumination | ≥300 Lux | ||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | 75%@5um | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
