| Working: | Automatic Control | Blowing: | Automatic Induction Blowing |
|---|---|---|---|
| Material: | SUS | Door Type: | Double Sliding Door |
| Name: | Clean Room Air Shower | Energy Source: | Electricity |
| High Light: | pharmaceutical clean room,semiconductor clean room |
||
SUS Double Sliding Door Cleanroom Air Shower Automatic Control
Cleanroom air shower Application
Cleanroom Air Shower and personal items to remove dust attached to the surface to reduce dust into the clean air traffic, both at the same time play a functional gas chambers, not clean air to prevent intrusion by the door to meet the clean air conditioning system to ensure that the clean room to meet cleanliness requirement.

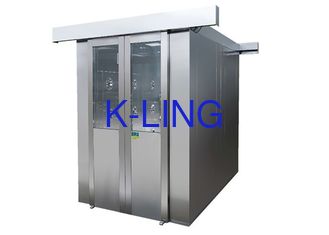

Keling Stainless Steel Air Shower
Specification & features:
1) Material: Stainless steel SUS304;
2) Electronic interlock: When A door is open, B door will be locked. A & B doors can't be open during blowing;
3) In case of emergency happens, emergency off button is equipped according to customers' need. Once press, two doors will be open;
4) Color LCD screen & touch-point switch are used to control the blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor can have the automatic blowing and stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided if needs;
7) German Dorma door closer is stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed if needs to keep the high efficiency when blowing off particles from personnel;
1·9) Have electronic interlock air shower patent.
Parameter:
| Model | KEL-AS1 | KEL-AS2 | KEL-AS3 | KEL-AS4 |
| Applicable Number of People | 1 | 3-4 | 4-5 | 5-6 |
| Air Shower Time | 0- 99s (Adjustable) | |||
| Number of Nozzle | 12 (two Sides) | 24 ( two Sides ) | 36 ( two Sides ) | 48( two Sides ) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
| Air Velocity at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×1000×1960 | 800×2000×1960 | 800×3000×1960 | 800×4000×1960 |
| Outside Dimension (mm) | 1700×1240×2200 | 1700×2240×2200 | 1700×3240×2200 | 1700×4240×2200 |
| Power Supply:380V,50HZ, we can made nonstandard voltage for different country. | ||||
| Maximum Power Consumption | 1.5KW | 3KW | 4.5KW | 6KW |
