Product Details:
Payment & Shipping Terms:
|
| Name: | Cleanroom Fan Filter Unit | Application: | Clean Room |
|---|---|---|---|
| Efficiency: | H14 | Power: | AC 220V |
| Material: | Galvanized Or Stainless Steel 304 | Warranty: | 1 Year |
| Other Name: | HEAP Fan Filter Unit | Voltage: | AC Power |
| High Light: | ffu Fan Filter Unit,clean room air filter |
||

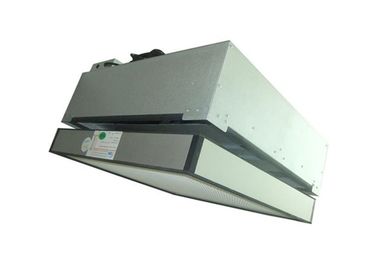

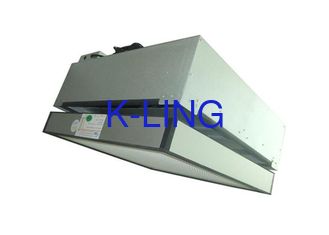

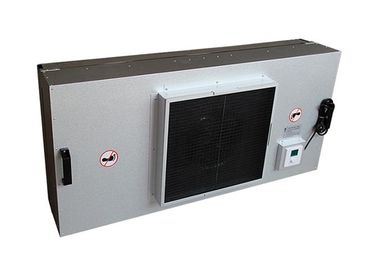

Clean Room Fan Filter Unit H14 Efficiency With AC Power Supply
Introduction
Fan filter units adopts imported anti-static MULTI wing type fan-type fan,with three wind speed control switch: high , medium and low-grade .and have big air volume, low noise for 45 decibels, up to 52 decibels. wind pressure spread evenly. to uniform stability. power consumption cost is low. Fan filter units are a kind of modular end air supply device with power and filtration efficiency.The air is inhaled from the top of the FFU and filtered by HEPA,after filtration evenly distributed through the air at 0.45m/s
Parameter
| Model | KEL-FFU1220 | KEL-FFU1170 | KEL-FFU610 | KEL-FFU570 |
| Rate air flow(m3/h) | 2000 | 1800 | 1000 | 900 |
| Noise (dB) | 45~60 | |||
| Efficiency | ≥99.99%~99.9995%(@≥0.3um) | |||
| Power | AC220v 50HZ | |||
| Overall size W*L*H (mm) |
1220*610*390 | 1170*570*340 | 610*610*390 | 570*570*340 |
| HEPA filter size W*L*H (mm) |
1220*610*69 | 1170*570*69 | 610*610*69 | 570*570*69 |
| Coarse filter size W*L*H (mm) |
495*495*21 | 495*495*21 | 395*395*21 | 395*395*21 |
| Input power (W) |
180W | 180W | 145W | 75W |
Features:
●Low running cost and easy to use
●Compact structure and environmental friendly
●Suitable for use in clean room of class1 to class 1000.
●High performance and low noise ,Low vibration fans
● Uniform wind speed and adjustable fan
●Fan box and filter can be divided and easy to replacement
●frame material are ALZINC frame , stainless steel(SUS304) frame , cold plate spraying frame
Application:
fan filter units can use modular connecting , fan filter units are widely used in the clean room, Clean Booth Station ,clean work station, clean production lines, packaged applications, laboratories, medical facilities ,local 100 class occasion etc.
Design Drawing
