Electronic Interlock Air Shower Pass Box Powder Coated Steel Material

Electronic Interlock Air Shower Pass Box Powder Coated Steel Material
Electronic Interlock Air Shower Pass Box Powder Coated Steel Material Electronic Interlock Air Shower Pass Box Powder Coated Steel Material

Large Image :  Electronic Interlock Air Shower Pass Box Powder Coated Steel Material

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASPB660
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Lock System: Electronic Interlock Material: Powder Coated Steel
Blowing Way: Air Shower Blowing Noise: <65dB
HEPA Filter: H13 Pre-filter: G4
High Light:

clean room cabinets

,

industrial clean room

Air Shower Electronic Interlock Air Shower Pass Box Powder Coated Steel Material





Introduction



Air shower pass box is clean room auxiliary device, mainly used deliver small items between clean area and non-clean areas clean to reduce open clean room door, reduced pollution on clean area is.
In order to reduce the the materical brought massed dust into clean room, the wind leaching transfer box by HEPA filtered clean air through the injection nozzle can rotated in all materical, efficiently remove dust particles, dust particles by HEPA filtered cleaningecycled into the air shower area after clearing finished.achieved the best results blow shower nozzle outlet winds can reach more than 20s.





Feature


1. The outer wall of high-quality cold-rolled steel spray
2. Short distance transfer box work tops, stainless steel, flat and smooth wearable
3. Long-distance transfer box work tops, manually roller, translate materical easy.
4. Two door with mechanical interlocking or electronic interlocking device to ensure the two door can not be opened at same time.
5. The air nozzle wind speed reach above 25m/s
6. filtration efficiency: 99.99% by HEPA filters, ensure reach purification level
7. Material made by EVA sealing, sealed high performance.
8. electronic components and materical from foreign import, reliable performance
9. Interphone for optional.
Mechanical linkage / solenoid interlock stainless steel, seamless connections / GMP standard



• Optional Concealed UV sterilization lamp / interphone / non floor design
• Internal size accord with clent request design.





Parameter





Description Air shower Pass Box
Model KEL-ASPB660
CabinetSize(L×W×H mm) 980×700×1800
Inner Size(L×W×H mm) 660×700×600
Wind speed above 25m/s
Nozzles QTY 4 ps
Wind leaching cycle 15s
Door interlock mode Electronic interlocking
Cabinet material Powder coated steel
Inner material Stainless steel plate
Filter efficiency 99.99%,0.55um
Power 0.75KW
Supply Voltage 380V 50HZ (3-Phase)





Display

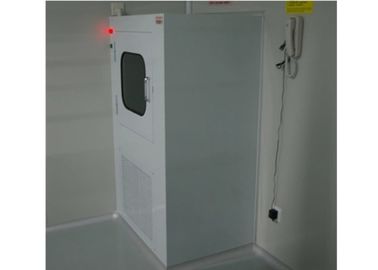

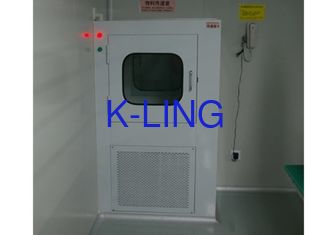

Electronic Interlock Air Shower Pass Box Powder Coated Steel Material 0

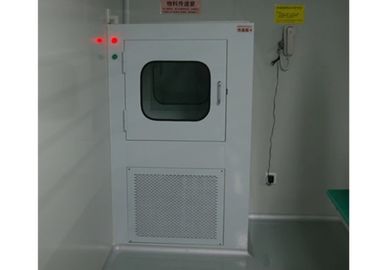

Electronic Interlock Air Shower Pass Box Powder Coated Steel Material 1

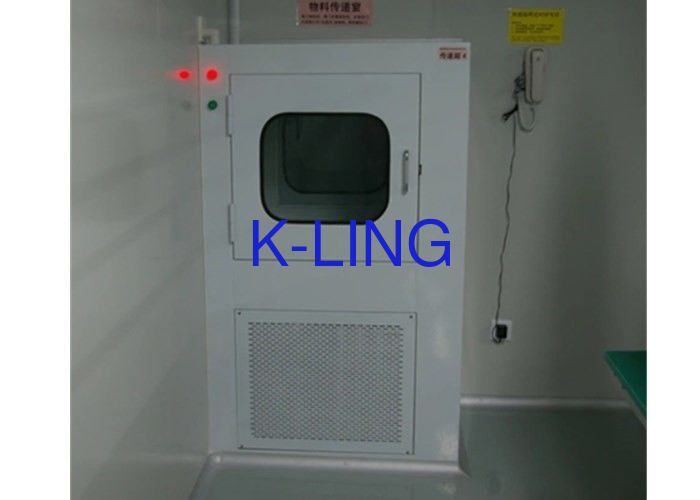

Electronic Interlock Air Shower Pass Box Powder Coated Steel Material 2
