Product Details:
Payment & Shipping Terms:
|
| Sensor Brand: | Omron | Blowing: | Automatic Induction Blowing |
|---|---|---|---|
| Material: | SUS304/ SUS 201/ SUS 316/ Powder Coated Steel | Application: | Clean Room Entrance |
| Level Of Noise: | <60 DB | Energy Source: | Electricity |
| High Light: | pharmaceutical clean room,semiconductor clean room |
||

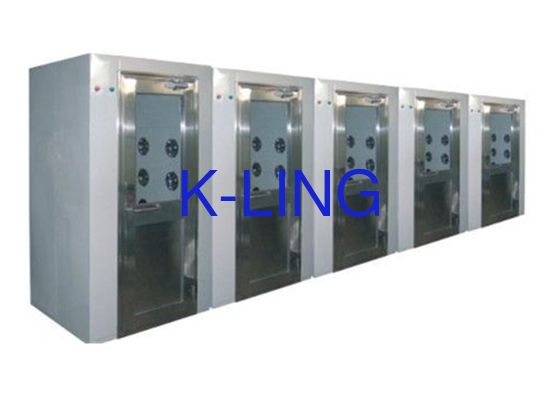

Automatic Induction Blow Clean Room Air Shower With Omron Sensor
Description
When people and goods enter the clean area, they need to be blown through the air shower. The clean air blown out can remove the dust carried by people and goods, and can effectively block or reduce the dust source from entering the clean area. The front and rear doors of the air shower/ cargo shower are electronically interlocked and act as air locks to prevent unpurified air from entering the clean area.
Feature
The intelligent voice air shower room has a voice prompt system. During the blowing, the automatic voice system prompts people to complete the entire dusting and dust removal process in an orderly manner, achieving an effective purification effect, and the clean air flow filtered by the high efficiency filter is rotatable. The nozzle is sprayed from all directions to the body to effectively and quickly remove dust particles, and the removed dust particles are filtered by the primary and high-efficiency filters and recycled to the air shower area.
Parameter:
| Stainless Steel Air Shower | ||||||
| Model | KEL - AS1200P1 | KEL - AS1200P2 | KEL - AS1200P3 | |||
|
External size ( W * D * H ) mm |
1200x1000x2180 | 1200X2000X2180 | 1200X3000X2180 | |||
|
Internal size ( W * D * H ) mm |
800x930x1910 | 800x1930x1910 | 800x2930x1910 | |||
| Personal per cycle | 1 - 2 persons | 2 - 4 persons | 3 - 6 persons | |||
| Air Shower Duration | Factory set at 15 seconds ( adjustable ) | |||||
| Construction | Stainless Steel 304 / 201 or Steel With Power Coated | |||||
| Fan Consumption | 750W * 1set | 750W * 2set | 750W * 3set | |||
| Fan Air Flow | 1300m3 / h | |||||
| Fan Run | 2800r / min | |||||
| SUS Nozzle | 12pcs | 24pcs | 36pcs | |||
| Wind Speed ( m / s ) | 22 - 27m / s | |||||
| Noise Level | 〈 65dB | |||||
| LED | 20W * 1 | 20W * 2 | 20W * 3 | |||
| HEPA Filter | Size | 630x630x6mm | ||||
| Efficiency | 99.99 % @ 0.3ｕｍ | |||||
| Resistance | 〈 220pa | |||||
| Pre - Filter | Size | 785x385x2mm | ||||
| Efficiency | 75 % @ 5ｕｍ | |||||
| Resistance | 〈 30Pa | |||||
| Electrical | Power | 380V / 50HZ | ||||
| Quality guarantee | 12 months | |||||
Package & Deliver
