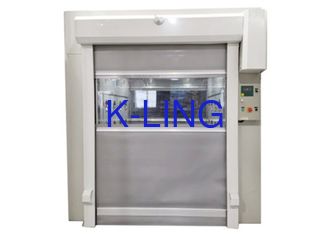

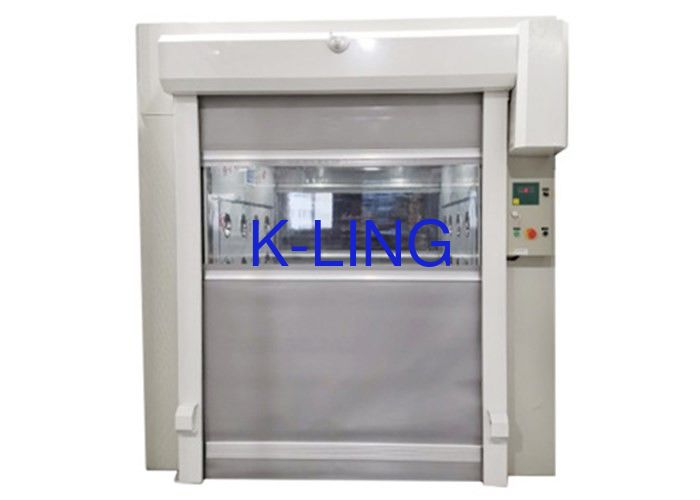

Fast Rolling Door Air Shower Tunnel Auto Open Door And SUS 304 Cabinet
Introduction
The fast rolling door air shower tunnel filtered by the high efficiency filter is sprayed from the rotatable nozzle from all directions to the person, effectively removing the dust particles efficiently and quickly. After the removal of the dust particles, the dust particles are filtered through the initial and efficient filters and then re-circulated to the wind area. In order to achieve the best effect of blowing, the air shower design of the nozzle outlet wind speed can reach more than 22m / s, blowing the wind speed of the lowest 18m / s, the factory initial air shower time set to 15 seconds. Air shower room provides a modular assembly, according to the actual needs of assembled into a variety of length of the air shower size
Feature
1, the use of more suitable for the principle of clean room installation.
2, the system automatically control the operation, two-door electronic interlock, and has a photoelectric sensor, one-way air shower, from the non-clean area into the door after the infrared sensor was blowing shower, blowing after entry lock Can go out from the air shower;
3, soft key touch time relay, LED display and set the blowing time, the range of 10-99s adjustable, blowing when the two-door automatic lock;
4, the use of early and efficient two-stage filtration system, a partition high efficiency filter, filtration efficiency: 99.99%, to ensure that the purification level
5, the wind outlet wind speed up to 25m / s or more, blowing the wind on the human body more than 18m / s
6, the use of EVA sealing material, high sealing performance
7, the use of imported electronic components, reliable performance
8, with all stainless steel adjustable angle nozzle, Nantai double volute outside the rotor air volume low noise fan, surface wind speed greater than 25m / s;
9, advanced noise reduction system quiet system.
10, the use of modular design, assembly and transportation is very convenient
Parameter:
| Dimension W×D×H (mm) | 1300×1000×2100 |
| Dimension of air shower area W×D×H (mm) | 800×920×1950 |
| Nozzle air speed(m/s) | 18-25m/s |
| Nozzle Number | 12 |
| Air shower time (s) | Leaving-factory initial setting is 10s, 10-99s (adjustable) |
| Blowing leaching way | The wind rain area left and right sides of the rain |
| Carton material | Stainless steel |
| Inner carton material | Stainless steel |
| Chassis Material | Stainless steel plate |
| HEPA Filter Size and No. | 610*610*120*2 |
| Filter | Efficient filter (Power ≥99.99%@ 0.3um)Preliminary filter, |
| Power consumption (w) | 550W*2 |
| Lighting (W) | 7W*1 |
| Power Supply | 380V 50HZ |
