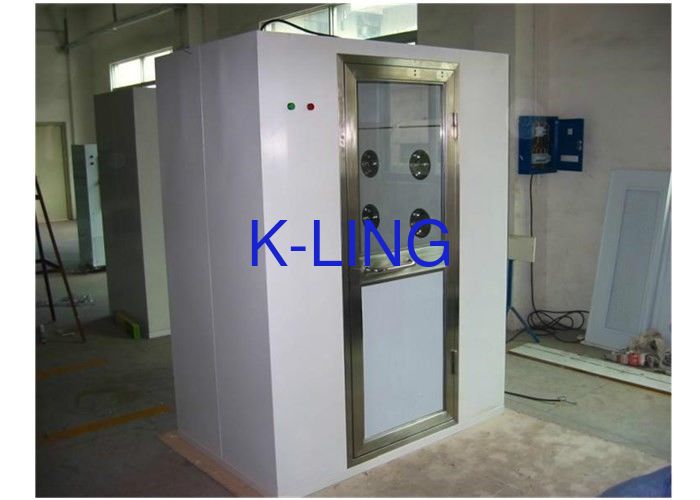

Standard Clean Room Air Shower With CE Certification Using In GMP Workshop
Description
Features:
Main body construction:heavy gauge Steel Plate with powder coating, and with stainless steel floor to minimize particle generation.
Mechanical or electrical interlock:helps preventing premature or mistaken opening of the pressure-sealed doors.
An Emergency Stop push button:will override the operating cycle to release the door locks immediately.
A power failure safety function:the door locks will open automatically, while power is fail accidentally, to protect workers from dangers.
Interior fluorescent lamp and flush windows:for best visibility and safety.
All units come standard with Programmable microprocessor control, touch panel, and timer w/LED Display.
With Auto, Stop, Manual, Emergency Stop function keys.
W/ Running, or Air Shower Clean Mode indicators fitted on FRT & RR door.
Audio system is available for an option.
Custom sizes are possible.
Parameter:
| Model,dimensions | 1 person with one side blowing | 1 person with two sides blowing | 2 persons with two sides blowing | 3 persons with two sides blowing | 4 persons with two sides blowing |
| ¶meters | |||||
| Target | |||||
| Person/persons per cycle | 1 | 1 | 2 | 3 | 4 |
| Air shower time | 1-99S Adjustable | ||||
| Nozzles | 6 (one side) | 12 (two sides) | 24(two sides) | 36 (two sides) | 48(two sides) |
| Nozzle Diameter | φ38mm | ||||
| Spurt wind speed | 15-20m/s | ||||
| Filter efficiency | ≥99.99% @ 0.5 micron | ||||
| Internal work area dimensions | 800×1875×860 | 800×1875×860 | 800×1890×1860 | 800×1890×2360 | 800×1890×2860 |
| W×H×D (mm) | |||||
| External dimensions(mm) | 1300×2050×1000 | 1600×2050×1000 | 1600×2050×2000 | 1600×2050×2500 | 1600×2050×3000 |
| Power | 3Phase 380V 50Hz | ||||
| Max. power(w) | 700 | 1400 | 1400 | 1400 | 2800 |
Customer’s design is available.
Design drawing
