Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall

Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall
Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall

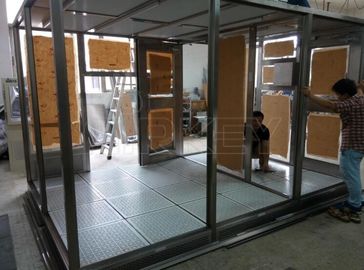

Large Image :  Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE
Model Number: KEL-KLF4500
Payment & Shipping Terms:
Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Detailed Product Description
Product Name: GMP Standard HardWall CleanRoom Frame: Stainless Steel 304 Frame
Fan Filter Unit: 1175x575x350mm HEPA Filter: 99.99%@0.3um
Perfilter: 450x450x17mm Purification Rank: ISO6
Wall: Plastic Curtain(T=0.3mm) Ceiling: Stainless Steel Board
Purification Light: 300Lux Size: 4500x4500x3000mm
High Light:

Laboratory clean room

,

portable clean room



Laboratory Dedicated Class100 Modular Cleanroom With HEPA Filter







Description:


    GMP Standard HardWall CleanRoom  is a kind of clean room, it can quickly improve the cleanliness of the equipment.
Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.

Specifications:

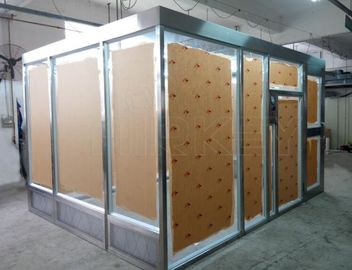

 Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall 0






Specifications:
Parameter
Softwall Clean Booth
Hardwall Clean Booth
Cleanliness
From Class 100 to Class 10,000
External Dimension
As per requirement


FFU
Cabinet Material
Stainless Steel

Dimension
2'X4' 6'X8',8'X12',12'X16' and so on or Customized
Power source
110V/60hz/av/dc, 220V/60HZ/AV/DC
HEPA Filter
H14 Hepa filter
Frame Material
Stainless Steel
Wall Material
Anti-static soft PVC wall 106~109Ω
Anti-static acrylic 106~109Ω
Lighting
Lamps
Available in LED and T5
Air condition
As per requirement
Available in constant temperature air conditioner/constant temperature and humidity conditioner



Technical Paremeters:

Class Level
Model
Inner dimension
W * D * H (mm)
Number of
FFU
Air volume(m3/h)



Class100
KELCS6 * 8
2000 * 3000 * 2400
6
6600
KELCS 8 * 12
2440 * 3660 * 2400
12
13200
KELCS 8 * 16
2450 * 4880 * 2400
16
17600
KELCS 8 * 20
2440 * 6100 * 2400
20
22000


Class 1000
KELCS6 * 8
2000 * 3000 * 2400
2
2200
KELCS 8 * 16
2440 * 4880 * 2400
4
4400
KELCS 12 * 16
3660 * 4880 * 2400
6
6600
KELCS 20 * 24
6100 * 7300 * 2400
12
13200


Class 10000
KELCS6 * 8
2000 * 3000 * 2400
1
1100
KELCS 8 * 16
2440 * 4880 * 2400
2
2200
KELCS 12 * 16
3660 * 4880 * 2400
4
4400
KELCS 20 * 24
6100 * 7300 * 2400
8
8800

Features

1. Economy: Lower cost compared with the traditional clean room, larger working area compared with laminar flow cabinet/Clean bench.
2. Efficiency: supply clean vertical airflow, easy to improve the cleanliness indoor
3. Convenience: Easy installation/ assembling.
4. Flexibility: Movable with wheel for small clean shed.
5. Customized design is available.


For more, please do not hesitate and feel free to contact us

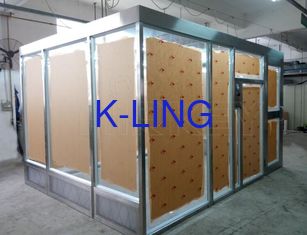

Lab Dedicated Class 100 Modular Clean Room With HEPA Filter / Plastic Curtain Wall 1



Features

1. Customized design is welcomed.

2. It can be used singly or combined.

3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost

and fast effect and can be easily installed.

4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement

(Universal wheel can be installed).
