GMP Standard Dust Free Hardwall Clean Room For Pharmaceutical Factory

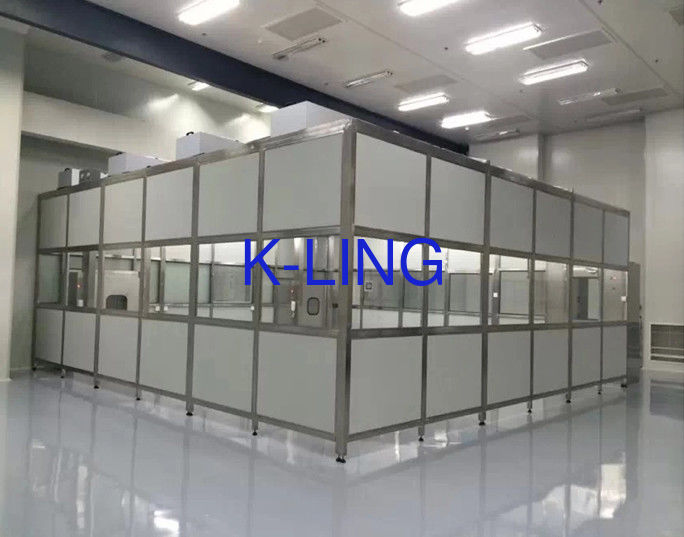

Large Image : GMP Standard Dust Free Hardwall Clean Room For Pharmaceutical Factory

Product Details:

Place of Origin:	China
Brand Name:	K-LING
Certification:	CE
Model Number:	KEL-KLF4500

Payment & Shipping Terms:

Minimum Order Quantity:	1SQM
Price:	NEGOATION
Packaging Details:	PLOWOOD PACKING
Delivery Time:	8 WORKING DAYS
Payment Terms:	Ex works/FOB/CIF/ CNF
Supply Ability:	2000sqm/month

Contact Now

GMP Standard Dust Free Hardwall Clean Room For Pharmaceutical Factory

Description

Product Name:	GMP Standard HardWall CleanRoom	Frame:	Stainless Steel 304 Frame
Fan Filter Unit:	1175x575x350mm	HEPA Filter:	99.99%@0.3um
Perfilter:	450x450x17mm	Purification Rank:	ISO6
Wall:	Plastic Curtain(T=0.3mm)	Ceiling:	Stainless Steel Board
Purification Light:	300Lux	Size:	4500x4500x3000mm
Highlight:	Laboratory clean room , portable clean room

GMP Standard Dust Free HardWall Cleanroom For Pharmaceutical Factory

Description:

GMP Standard HardWall CleanRoom is a kind of clean room, it can quickly improve the cleanliness of the equipment.

Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.

Specifications:

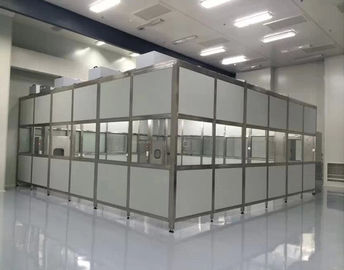

GMP Standard Dust Free Hardwall Clean Room For Pharmaceutical Factory 0

GMP Standard HardWall CleanRoom feature 4 inch square main support posts with sturdy aluminum framing and a white powder-coated finish. Each softwall cleanroom is pre-assembled & labeled at the factory for fast and easy on-site installation. To eliminate the influx of detrimental contaminants from the surrounding area, the clear solid vinyl curtains are secured at the top and both sides to ensure a positive airflow within the softwall cleanroom. Our softwall cleanrooms are designed and built to meet any cleanliness level from Class 10 to Class 100,000

Model	KEL-1500	KEL-2000	KEL-3000	KEL-5000
External Size (WDH)	150020002530mm	200030002530mm	300040002530mm	500050002530mm
HEPA Filters	99.999% efficiency at 0.3 um
Consumption	500W	800W	1000W	1600W
FFU Nos.	4 pcs	6 pcs	12 pcs	25 pcs
Clean Level	ISO 5 (Class 100), Class A
Control System	Microprocessor control system
Rectangular Tube Material	Cold-rolled steel with anti-bacteria powder coating
Wall Material	Anti-static dustproof curtain
Blower	Built-in centrifugal blower; speed adjustable
UV Lamp	Emission of 253.7nanometers, with UV timer
Air Velocity	0.1~0.6m/s, average 0.45m/s
Noise	≤58db
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	390Kg	670Kg	1100Kg	2900Kg
Package Size (WDH)	2110930920mm 2260660500mm	30809801260mm 3080660550mm	30809801260mm 30809801260mm 4080660550mm	40809801260mm 40809801260mm 40809801260mm 12606601260mm 5080460500mm
Customized design for clean level, size or material is available

GMP Standard Dust Free Hardwall Clean Room For Pharmaceutical Factory 1

Features

1. Customized design is welcomed.

2. It can be used singly or combined.

3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost

and fast effect and can be easily installed.

4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement

(Universal wheel can be installed).
