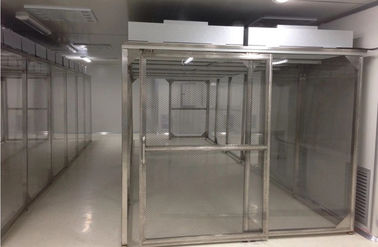

ULPA Filter Portable Capsule Clean Room For Biology Laboratory
Product features:
1. K-LING has changed the traditional design concept of capsule clean booth, mini-clean unit take the concept of modular integration design,
this architecture is similar to SMIF form, it has variety of independent clean area,
the only difference is that the transmission is not carried out by the connecting arm, but to operate in a closed clean room. It has the independent air conditioning and return air system. The advantage of this form is easy elastic spacing, low construction costs, compared with the traditional civil construction purification room, the cost is greatly reduced.
2. Provide clean vertical airflow, keep the room cleanliness.
3. Adopt an independent high efficiency HEPA filter or ULPA filter and FFU blower composed of high-level clean space. A standard 10'x10 'clean
booth takes only a few hours to install and disassemble more easily.
4. The support leg can increase the number of FFU, the internal clean level of clean booth can reach
100 ~ 10000 level.
| Model | KEL-1500 | KEL-2000 | KEL-3000 | KEL-5000 |
| External Size (W*D*H) | 1500*2000*2530mm | 2000*3000*2530mm | 3000*4000*2530mm | 5000*5000*2530mm |
| HEPA Filters | 99.999% efficiency at 0.3 um | |||
| Consumption | 500W | 800W | 1000W | 1600W |
| FFU Nos. | 4 pcs | 6 pcs | 12 pcs | 25 pcs |
| Clean Level | ISO 5 (Class 100), Class A | |||
| Control System | Microprocessor control system | |||
| Rectangular Tube Material | Cold-rolled steel with anti-bacteria powder coating | |||
| Wall Material | Anti-static dustproof curtain | |||
| Blower | Built-in centrifugal blower; speed adjustable | |||
| UV Lamp | Emission of 253.7nanometers, with UV timer | |||
| Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
| Noise | ≤58db | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
| Gross Weight | 390Kg | 670Kg | 1100Kg | 2900Kg |
| Package Size (W*D*H) |
2110*930*920mm 2260*660*500mm |
3080*980*1260mm 3080*660*550mm |
3080*980*1260mm 3080*980*1260mm 4080*660*550mm
|
4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm |
| Customized design for clean level, size or material is available | ||||
keling'S Product
1. Can be used alone, also can be combined.
2. With civil or fabricated best level than clean shed (room), less investment, quick effect, convenient installation, low operating cost.
3. The modular structure, and improve the level of cleanliness is easy, strong expansibility, and repeated use of high value
4. Convenient mobile (can be installed wheels)
