Class 10000 Softwall Clean Room with Stainless Steel Frame and Fan Filter Unit

Large Image : Class 10000 Softwall Clean Room with Stainless Steel Frame and Fan Filter Unit

Product Details:

Place of Origin:	China
Brand Name:	K-LING
Certification:	CE,
Model Number:	KEL-KLF8000

Payment & Shipping Terms:

Minimum Order Quantity:	1SQM
Price:	NEGOATION
Packaging Details:	PLOWOOD PACKING
Delivery Time:	8 WORKING DAYS
Payment Terms:	Ex works/FOB/CIF/ CNF
Supply Ability:	2000sqm/month

Contact Now

Class 10000 Softwall Clean Room with Stainless Steel Frame and Fan Filter Unit

Description

Prefilter Size:	450x450x17mm	Wall Material:	Plastic Curtain(T=0.3mm)
Purification Rank:	Class100/ ISO5	Fan Filter Unit:	1175x575x350mm
HEPA Filter Efficiency:	99.99%@0.3um	Ceiling Material:	Stainless Steel Board
Highlight:	Laboratory clean room , portable clean room

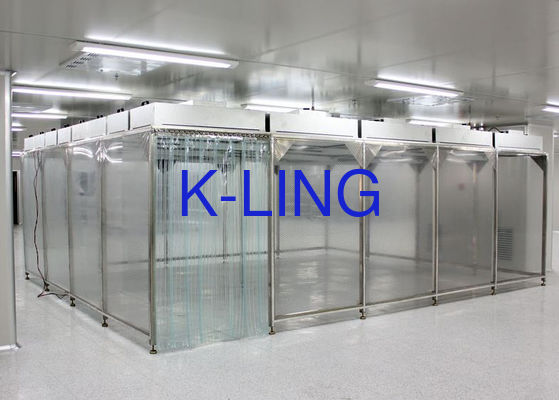

Class 10000 Microelectronics Softwall Clean Room With Fan Filter Unit

Product Overview

This Class 10000 Microelectronics Softwall Clean Room with Fan Filter Unit provides controlled clean environments for sensitive manufacturing and research applications.

Standard Specifications

External Size: 8000×4500×3100mm

Internal Size: 7900×4400×2700mm

Purification Rank: Class 10000

HEPA Filter Efficiency: 99.999%@0.3μm

Laminar Flow: Vertical

Air Speed: 0.3-0.6m/s

Fan Filter Units: 8 sets (1175×575×350mm)

Power: 220V/50HZ or 110V/60HZ

Wall Material: Plastic curtain

Applications

Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection molding, electronics assembly, and hospital pharmacy.

Available Models

Model	KEL-SFC-23B	KEL-SFC-34A	KEL-SFC-68C
External Dimension (W×L×H)	2100×3100×2590mm	3100×4100×2590mm	6100×8100×2590mm
Internal Work Zone (W×L×H)	2000×3000×2200mm	3000×4000×1900mm	6000×8000×2200mm
Clean Class Level	1000 Class (ISO 6)	100 Class (ISO 5)	10000 Class (ISO 7)
Air Velocity	0.3-0.5m/s	0.3-0.5m/s	0.3-0.5m/s
Noise	≤65dB	≤65dB	≤65dB
Vibration Half Peak	≤5μm	≤5μm	≤5μm
Lighting	40W×2	40W×2	40W×2
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz
Material	Framework: Epoxy powder coated steel/Stainless steel/Aluminum Wall: Anti-static strip curtain/Soft air curtain/Plexiglas

Customized design is welcome.

Operating Features

Provides localized high-clean environment by installing over required work areas. FFU units filter air through HEPA filters, delivering clean air vertically into work zones to meet purification requirements
Low noise operation (less than 60dB) with adjustable air velocity of 0.3-0.55m/s
Framework constructed from aluminum alloy with optional wall materials including plexiglass, acrylic sheet, PVC plate, or PVC anti-static blinds
Can be used as standalone unit or connected to existing clean areas in series
Purification rank in work area: 0.3μm dust (FS209E 100-10000 class)
