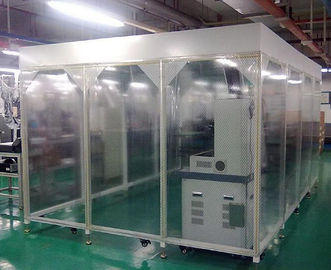

110V 60HZ Class 1000 Pharmacy Softwall Clean Room With HEPA Filtration

small.img.alt small.img.alt

Large Image :  110V 60HZ Class 1000 Pharmacy Softwall Clean Room With HEPA Filtration

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-KLF3000
Payment & Shipping Terms:
Minimum Order Quantity: 1SQM
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Detailed Product Description
Product Name: Pharmacy Softwall Cleanroom Frame: Stainless Steel 304 Frame
Fan Filter Unit: 1175x575x350mm HEPA Filter: 99.99%@0.3um
Perfilter: 450x450x17mm Purification Rank: Class100/ ISO5
Wall: Plastic Curtain(T=0.3mm) Ceiling: Tainless Steel Board
Purification Light: 4-5 Pcs
High Light:

Laboratory clean room


portable clean room

Class1000 Pharmacy Softwall CleanRoom With HEPA Filtration


Quickly detail : softwall Cleanroom

 External size : 8000x4500x3100mm
 Internal Size: 7900x4400x2700mm
 Purification rank: Class1000
 HEPA filter efficiency: 99.999%@0.3um
 Laminar flow: vertical
 Air speed :0.3-0.6m/s

 Fan filter unit : 8 sets   1175x575x350mm

 Power: 220V/50HZ  110V/60HZ

Wall : Plastic curtain


Pharmacy softwall cleanroom is a local air purification equipment to provide high- clean environment, is a clean room which the

most quickly and easily create. Softwall cleanroom main consist of cabinet, fan, prefilter and HEPA filter, damping layer, lamps and other components. It can be suspended, but also can be ground support, compact structure, easy to use. Can use single or multiple connections to compose of banded clean area.

pharmacy softwall cleanroom interior cleanliness can be reached100-100000class level, in order to reduce structural costs of clean shed, keling changed the traditional concept of clean shed design, take a modular integrated design concept ,

this structure has a variety of separate clean area, for some areas of general clean class level clean room that required high clean class level do local creation to reduce costs, thus making the workers and equipment, products effectively isolated, can minimize the pollution, thereby increasing the rate of qualified products.



Applications:   softwall Cleanroom
Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy
 110V 60HZ Class 1000 Pharmacy Softwall Clean Room With HEPA Filtration 0

Operating features; softwall Cleanroom


1:  the softwall cleanroom  can offer the part of high clean environment ,it can be installed on the top of the place

    that need to clean.The air that come out from the FFU will be filtered by the HEPA filter ,then the clean

     air enter into the work zone vertically to insure the purification requirement

2.  the noise less than 60db,the air velocity is 0.3-0.55m/s
 3.  Material: the frame of clean booth is made of aluminun alloy, the board can be choosen plexiglass,
      Acrylic sheet, PVC plate. It is also can be made of PVC anti-static blinds.
4.  it can be used by single and also can be connected to clean area in strip
5.  purification rank : in work area : 0.3um dust ((FS209E100-10000class )
     Clean booth offer the part of high clean environment


Technical Parameter:   softwall Cleanroom




Ex size (mm)


In size (mm)


Purification rank

Class1000 -(FS209E USA)

HEPA filter

Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)


Efficiency : 85% @ 5um

Control system

 PC control system / promised speed by control box

Pressure Gauge

 American Dywer pressure


<50-55 dB  (test point distance is 1m)

 Air velocity

    0.2-0.5m/s Adjustable   (test point distance is 30cm)

Frame material

 stainless steel/steel with power coated/Cast aluminum profile

Wall frame

Tempered glass / PVC anti-static curtain (option)


EBM Fan /Taiwan fan/ Domestic fan (option)

Power suppler

    AC110/220v  50HZ/60HZ

 Customer’s design is available.
