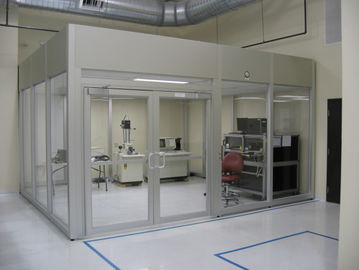

ISO14644-1 standard Portable Dust Free Modular Clean Room With Fan Filter Unit
Product Features:
Purification Rank : Class100
Fan filter unit with HEPA filter in 99.995%@0.3um
Control System Function :
A: Control the power on/off
B: control the fan filter unit air speed UP/Down
C: Control working area purification light
D: Control the UV light in working area
E: Monitor differential gauge so that replacement HEPA filter in time.
Material : stainless steel 304 or steel with milk color powder coated
perssure Relief valve one set.
Products Parameter:
| Item |
Hard wall modular cleanroom |
| Purification Rank |
Class to class 100.000 |
| Dimension L*W*H |
According client request |
| Fan Filter Unit |
Dimension |
2x2,2x4,4x4 optional |
| Structural Material |
Stainless steel, aluminum alloy, AI-Zn plate |
| Power Supply |
220V/50HZ AC |
| Air Filter |
Mini-pleats HEPA /ULPA Air filter |
| Frame Material |
Aluminum alloy/stainless steel201/304 |
| Wall Material |
Acrylic /sandwich panel/anti-static acrylic |
| Ceiling |
Aluminium –plastic panel , sandwich panel |
| Air Conditioner |
Constant temperature air conditioning
Or Constant temperature and humidity air conditioning |
| Lighting |
LED light or T5 (Optional ) |
| Air Shower |
Optional |
| Pass Box |
Optional |
| Air Flow Floor |
Optional
|
Illustration:
1: The frame is steel cube with milk powder coated.
2: M support leg
3: The wall made from clarity synthetic glass.
4: FFU control box.
5: FFU with HEPA filter and pre-filter
6: Purification lamp
7: PVC strip curtain
8: Purification rank class100-1000 (FS209E Stander)
applications:
Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy
Why you choose K-LING Company ?
1. Superior Quality
Quality is our biggest concern. We are always striving for quality improvement from the first beginning.
2. Competitive Price
Competitive price is one of our advantages compared to
others. We are always working hard to lower down the cost
while still improve or keep the quality.
3. Customer first service
Focus on customization, we provide the free design by our designers. Reply with 24 hours if any questions and pack in time for delivery.
4. All-in-one convenience
We are dedicated to give you all-in-one service. You just tell us your demand, then we will take care of your demand, design drawings, build the clean room and provide you best after sale.
5. Product diversification
We are not only undertake clean room construction, clean booth construction, etc., but also an agent to export accessories from other factory. You could always choice the suitable products in our company.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
