KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Size: | 592x592x292mm | HEPA Filter: | 99.995%@0.3um |
|---|---|---|---|
| Media: | Glass Fibre | Pack: | 4pack |
| Frame: | ABS Plastic Frame | Media Area: | 14sqm |
| Product Name: | Secondary Air Filters | Other Name: | Compact Rigid Filter |
| High Light: | hepa high efficiency particulate air filter,clean room air filter |
||

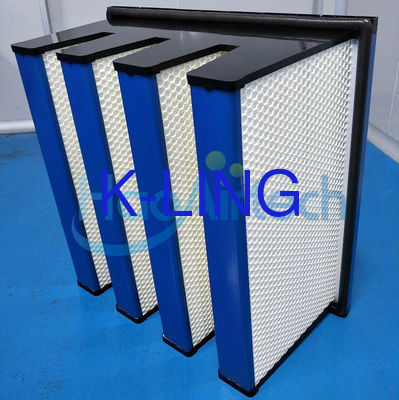

Secondary Compact Rigid HEPA Air Filter glass fibre Media Low Resistance
General Trade Information:
Brand: k-ling
Model number: KEL-EPA-V Series
OEM /ODM: Yes Start port: Guangzhou
Certificated: Rosh MOQ: 10sets
Delivery time: 8 working days after we get the deposit. Supply ability: set/one month
Country of Original: China Payment term: T/T , L/C , Western union ,
Application: HVAC System
Products Characteristics:
Big air volume
Low Resistance
High dust holding capacity
ABS frame comply with Rosh test report
Both side with screen protect the media
PU gasket or EVA gasket for your choose .
Introduction:
The media material is super glass fibre for 0.5um particulate
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA prevent the air leaking in operation
ABS/PVC frame in 3V,4V,5V for your choose.
Adopting the laser to scan the filter one by one ( MPPS)
100 % provide the test report for each V Cell air filter
Filtration Efficiency: F9.F8,F7,F6,(ASHAR ).
Applied to the terminal filtration of the air-condition filtration system
Products Parameter:
|
Dimension (mm) (W*H*D) |
Pack NO |
Rate Air Flow (m3/h) |
Media Area (m2) |
Dust Holding (g) |
Efficiency |
Rate primary Resistance (Pa) |
Finally Resistance (Pa) |
| 592X287X292 | 4 | 2100 | 11.02 | 660 |
F7 65%@0.5um |
<80Pa |
300-350pa |
| 592X490X292 | 4 | 3550 | 18.6 | 1200 | |||
| 592X592X292 | 4 | 4500 | 22.1 | 1350 | |||
| 610X610X292 | 5 | 5400 | 29 | 1750 | |||
| 592X287X292 | 4 | 2100 | 11.02 | 660 |
F8 85%@0.5um |
<100pa |
350-400pa |
| 592X490X292 | 4 | 3550 | 18.6 | 1200 | |||
| 592X592X292 | 4 | 4500 | 22.1 | 1350 | |||
| 610X610X292 | 4 | 5400 | 29 | 1750 | |||
| 592X287X292 | 4 | 2100 | 11.02 | 660 |
F9 90%@0.5um |
<120pa |
400-450pa |
| 592X490X292 | 4 | 3550 | 18.6 | 1200 | |||
| 592X592X292 | 4 | 4500 | 22.1 | 1350 | |||
| 610X610X292 | 5 | 5400 | 29 | 1750 |
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Why You Choose our Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual Delivery Time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
HEPA Air Filter Application :
