Product Details:
Payment & Shipping Terms:
|
| Other Name: | Stainless Steel Pass Box | Internal Size: | 750x750x750mm (W*D*H) |
|---|---|---|---|
| External Size: | 950X820X1300mm(W*D*H) | Material: | Stainless Steel 304(t=1.0mm) |
| Air Speed: | 0.45m/s | Guage: | Perssure Guage |
| Purification Rank: | Class 100 | Exhaust Air: | 10-15% |
| Filter Step: | Perfilter +secondary Filter+ HEPA Filter | HEPA Filter Effciency: | 99.995@0.3um |
| Highlight: | clean room cabinets,industrial clean room |
||
Quickly detail:
External size : 950x820x1300mm
Inside Size: 750x750x750mm
HEPA filter efficiency: 99.99%@0.3um
Blower way: vertical laminar flow
Air speed :>0.36-.045m/s
Power: 220V/50HZ
Purification rank : class 100

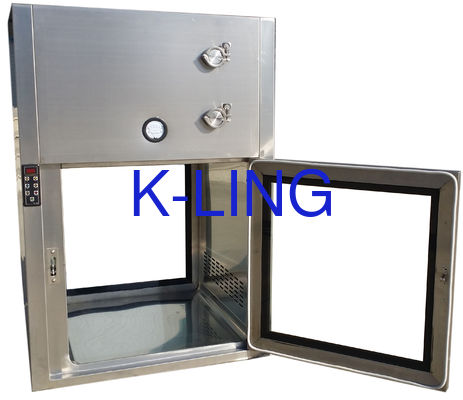

In any pharmaceutical manufacturing facility it is essential to minimise man / material movement & avoid cross
contamination between different classified areas to achieve desired classification & to maintain integrity of products & process.
The Passboxes are designed to allow material transfer without much personnel movement.
It also ease controlling ingress of particulate contaminants into the cleanroom & between different classified areas.
Paramter :
|
MODEL |
KEL-ASPB750 |
|
External size(mm) (WXDXH) |
950X782X1300mm |
|
Internal size (mm) (WXDXH) |
750X750X750mm |
|
Interlocker |
Electronic Interlocker |
|
SUS Nozzle |
/ |
|
Pre-filter (mm) |
525x275x17 |
|
HEPA Filter(mm) |
484x484x69 |
|
Air flow (m/s) |
1200m3/h |
|
Fan power |
220V/50HZ 750w (1set) |
|
Noise |
<78 |
|
HEPA Filter |
99.995% @0.3um |
|
UV lamp |
1 pcs |
|
Material
|
1:Entirety Sus201/304 (T=1.0/1.2mm) 2:External is steel with power coated, Internal is SUS304(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201 (T=1.0/1.2mm) |
Customer’s design is available.
Keling is designed to allow material transfer through controlled environment without much personnel movement.
It also aids controlling ingress of particulate contaminants into clean room & between different classified areas.
keling is available in powder coated Mild Steel, SS 304 / SS 316/ SS 316L or a combination of both.
General Specifications
Two Stage filtration
EU6 – Prefilter (95% down to 5 micron) • EU14 – HEPA Filter – Supply (99.999% down to 0.3 micron)
Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
Doors with double walled flush glass view panels
SS Handles & SS hinges
Internal covings for easy cleaning
Electro-magnetic Interlocking
Indicator on either side
Door Release Switch on either side
Differential Pressure Gauge : 1 No.
On / Off Switch for Motor
DOP Test Port
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
