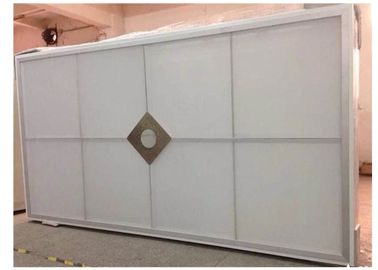

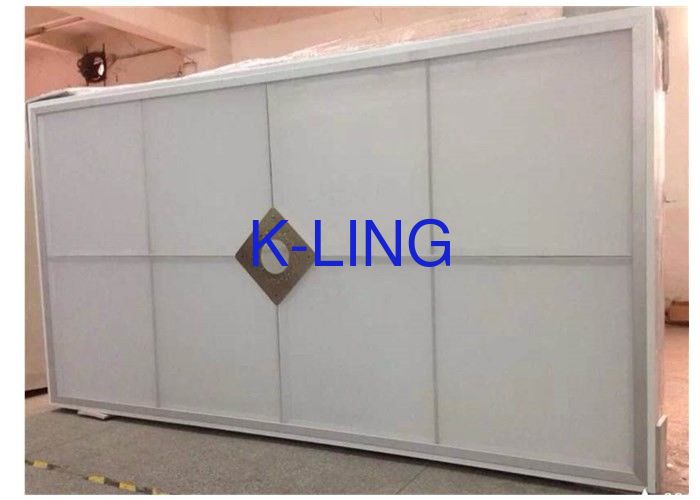

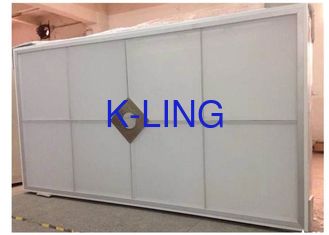

CE ISO Certification Laminar Flow Ceiling For Hospital Operating Room
Introduction
It with highest filter efficiency up to 99.9999% for 0.12um particles filtration, with the special design which specialized for hospital operation clean room ceiling can combine with operation special lights.
Keling Laminar flow ceiling comply with Biological contamination control system that can prevent the dust, particle, bacterial from the operating room, creating the high purification rank, appropriate temperature and humidity so that we have comfortable clean and safe environment.
Feature
1. Inner Octagonal designing, fits purified air flow movement characteristics, Meet clean room technology;
2. All walls, ceilings, floorings are stable, seamless, smooth, non-glare, no rust, insulation, moisture, and air sealed. All parts are finished in our factory as modular parts, effect for installing;
3. Operating Theatre / Operating Room special Laminar Air Flow Ceiling System, including Air Duct, Air Filters, Air Outlets, Return Air Inlets, Clean Room Lights, Surgery Lamp Installing Brackets, Ceiling Medical Pendant Installing Brackets, etc., to promote air circulation , and to ensure the air cleanliness in Operating Theatre / Operating Rooms;
4. Ground paved with Operating Theatre / Operating Room special PVC Flooring Rolls. The flooring is wear-resistant, anti-static, mute, non-slip, anti medical chemical damage, and easy to clean;
5. Walls mounted with Stainless Steel Instrument Cabinet, Medicine Cabinet, Anesthesia Cabinet, X-Ray Viewer, Fold-able Writing Shelf, etc. All equipment are mounted into walls and surface flush with walls to ensure air flow as design;
6. Intelligent Digital Controlling System, to control indoor environment with Temperature, Humidity, Lighting, Nurse Calling & Intercom, Background Music, CCTV, Time Displayer, Timing, etc.;
7. Optional Medical Equipment for Operating Theatre / Operating Room:
Technical Parameter :
Customer's design is available.
| Model |
KEL-LFC1 |
KEL-LFC2 |
KEL-LFC3 |
|
Cabinet size(mm)
(L*W*D)
|
2680X2840X500 |
2680X1880X500 |
2680X1480X500 |
|
Laminar flow size
(mm)
|
2600X2400 |
2600X1800 |
2600X1400 |
| Flange size( mm) |
500X200 (4PCS) |
500X200 (4PCS) |
320X200 (4PCS) |
| Efficiency |
99.99%@0.3um-99.999%0.12um(MPPS) |
| Air velocity(m3/h) |
0.45 |
0.3 |
0.23 |
| Using occasion |
ⅰClass operate room |
ⅱClass operate room |
ⅲ Class operate room
|

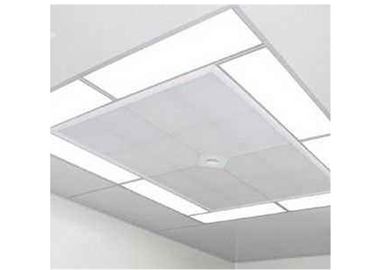

Installation
About us :
KeLing Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China . Our products with good quality , reasonable prices and custom design .
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc . AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
